Air preparation-Regulator Series AR
Air preparation-Regulator Series AR
Air preparation-Regulator Series AR
AR2000
.jpg)
.jpg)
AR4000
AR5000
Product Features
1.Direct-action membrane regulator, high flow rate,minimum hysteresis,with initial pressure compensation,output pressure constant,pressure setting and lockable with rotary knob.
2.Normal and inverse pressure gauge connections,which are suitable for various installation selections.
3.Vent backflow selection.

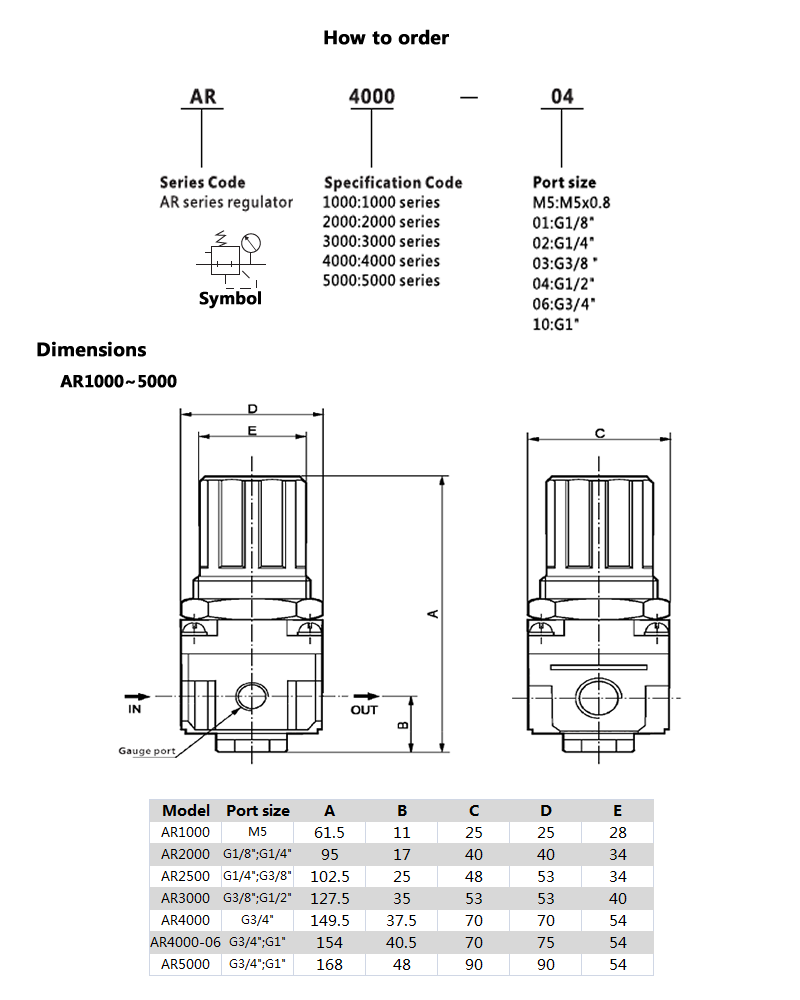

Specification
.png)
AR2000
AR4000
AR5000
Product Features
1.Direct-action membrane regulator, high flow rate,minimum hysteresis,with initial pressure compensation,output pressure constant,pressure setting and lockable with rotary knob.
2.Normal and inverse pressure gauge connections,which are suitable for various installation selections.
3.Vent backflow selection.
Specification
| Model | AR1000-M5 | AR2000-01 | AR2000-02 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 | ||
| Port size | G1/8" | G1/4" | G3/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" | ||||
| Operating medium | Compressed air | |||||||||||
| Regulator function | Improved relief, output pressure constant | |||||||||||
| Pressure range | 0.1~1.0MPa(14.5~145Psi)(1~10bar) | |||||||||||
| Temperature range | -10~60℃ | |||||||||||
| Ensured pressure resistance | 1.6MPa | |||||||||||
| Type of mounting | Via accessories | |||||||||||
| Assembly position | Anyway | |||||||||||
| Regulator lock | With lock | |||||||||||
| Pressure regulating range | 0.05~1.5MPa(7.3~217.5Psi)(0.5~15bar) | |||||||||||
| Pressure indicator | With pressure gauge | |||||||||||
| Lubricant recommended | ISO VG32 or equivalent | |||||||||||
| Body material | Die casting aluminum alloy | |||||||||||
