MXS Series Air Slide Table
MXS Series Air Slide Table
Air Slide Table Series MXS
Specification
Ordering Information
.jpg)

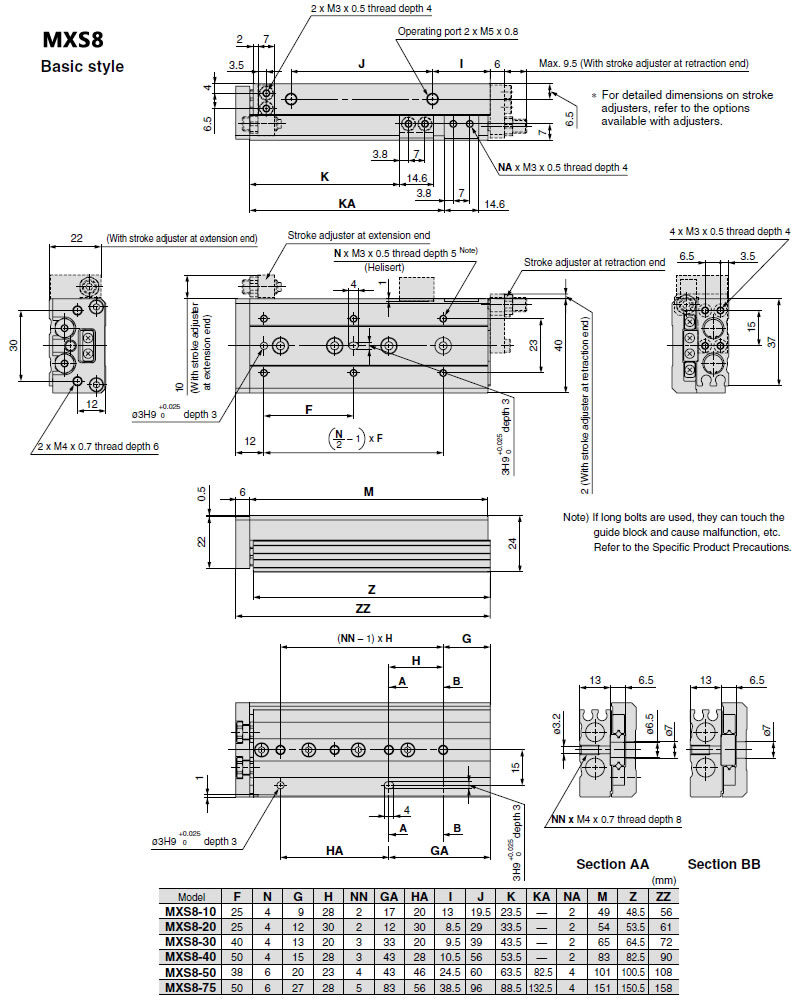

Dimension
.jpg)
.jpg)
.jpg)
.jpg)
Specification
| Bore size (mm) | 6 | 8 | 12 | 16 | 20 | 25 | ||
| Piping port size | M3 x 0.5 | M5 x 0.8 | Rc 1/8, NPT 1/8, G 1/8 | |||||
| Fluid | Air | |||||||
| Action | Double acting | |||||||
| Operating pressure | 0.15 to 0.7 MPa | |||||||
| Proof pressure | 1.05 MPa | |||||||
| Ambient and fluid temperature | -10 to 60°C | |||||||
| Piston speed | 50 to 500 mm/s | |||||||
| Cushion |
Rubber bumper (Standard, With stroke adjuster) Shock absorber (Optional) |
|||||||
| Lubrication | Non-lube | |||||||
| Auto switch (Optional) |
Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire) 2-color indication solid state auto switch (2-wire, 3-wire) |
|||||||
| Stroke length tolerance | +1~0 mm | |||||||
Dimension
