Air Source Treatment Filter and Regulator Series GFR
Air Source Treatment Filter and Regulator Series GFR
Air Source Treatment Preparation unit--Filter and Regulator Series GFR
GFR200-08
GFR300-15
Product Features
1.Embedded square pressure gauge is used to save installation space.(External circular pressure gauge is also optional).
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.Balanced design is adopted for the pressure adjustment mechanism.
4.In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).
5.Unique diversion structure spins the air flowing through to effectively sparate the liquid from the air and reliabily filter the solid grain.
6.The filtering grade includes 5μm and 40μm(optional).
7.Three drain types are available:manual drain,semi-auto drain and automatic drain.
8.The bracket can be selected for installation.
Specification

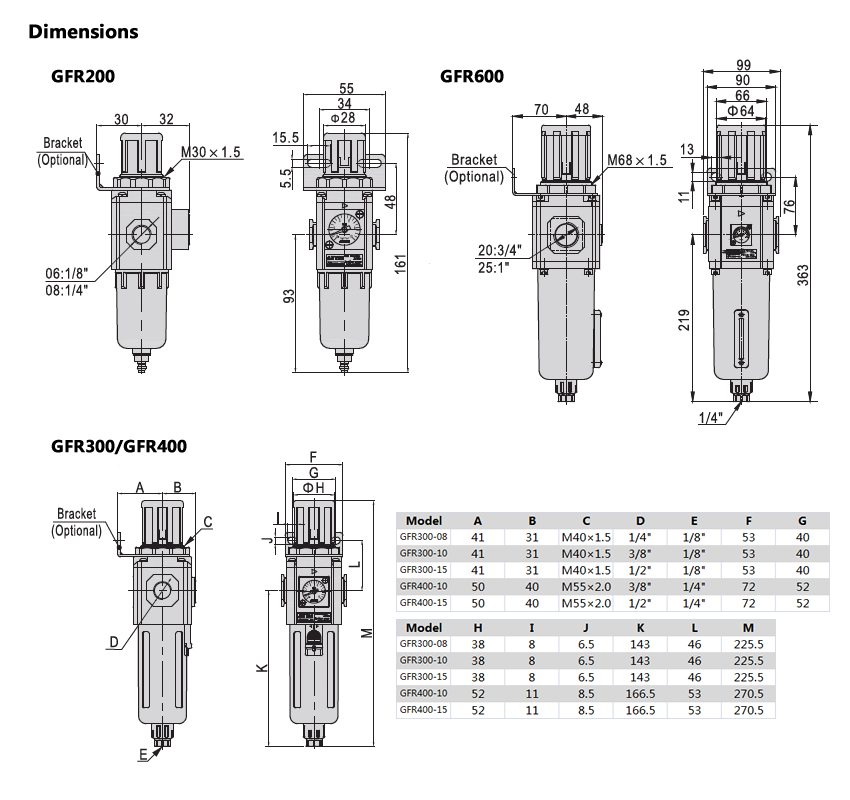

.png)
GFR200-08
GFR300-15
Product Features
1.Embedded square pressure gauge is used to save installation space.(External circular pressure gauge is also optional).
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.Balanced design is adopted for the pressure adjustment mechanism.
4.In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).
5.Unique diversion structure spins the air flowing through to effectively sparate the liquid from the air and reliabily filter the solid grain.
6.The filtering grade includes 5μm and 40μm(optional).
7.Three drain types are available:manual drain,semi-auto drain and automatic drain.
8.The bracket can be selected for installation.
Specification
| Model | GFR200-06 | GFR200-08 | GFR300-08 | GFR300-10 | GFR300-15 | GFR400-10 | GFR400-15 | GFR600-20 | GFR600-25 | ||
| Fluid | Air | ||||||||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | 3/8" | 1/2" | 3/4" | 1" | ||
| Filtering range | 40μm or 5μm | ||||||||||
| Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20~130psi);Manual drain:0.05~0.9MPa(7~130psi) | ||||||||||
| Max.pressure | 1.0MPa(145psi) | ||||||||||
| Proof pressure | 1.5MPa(215psi) | ||||||||||
| Temperature range | -20~70℃ | ||||||||||
| Capacity of drain bowl | 10CC | 40CC | 80CC | 230CC | |||||||
| Weight | 220g | 500g | 1030g | 2400g | |||||||
