Air preparation-Air filter Series AF

Air preparation-Air filter Series AF
AF2000

AF3000

AF4000

AF5000


Product Features
1.The sintered filter element or plastic filter element is optional.
2.The particle and condensate water separation characteristics is good, flow rate is high and the differential pressure is low.
3.The filter element 5μm or 40μm is optional.
4.The structure is delicate and compact and has the high-strength metal bowl guard, which is safe and reliable for application.

Specification

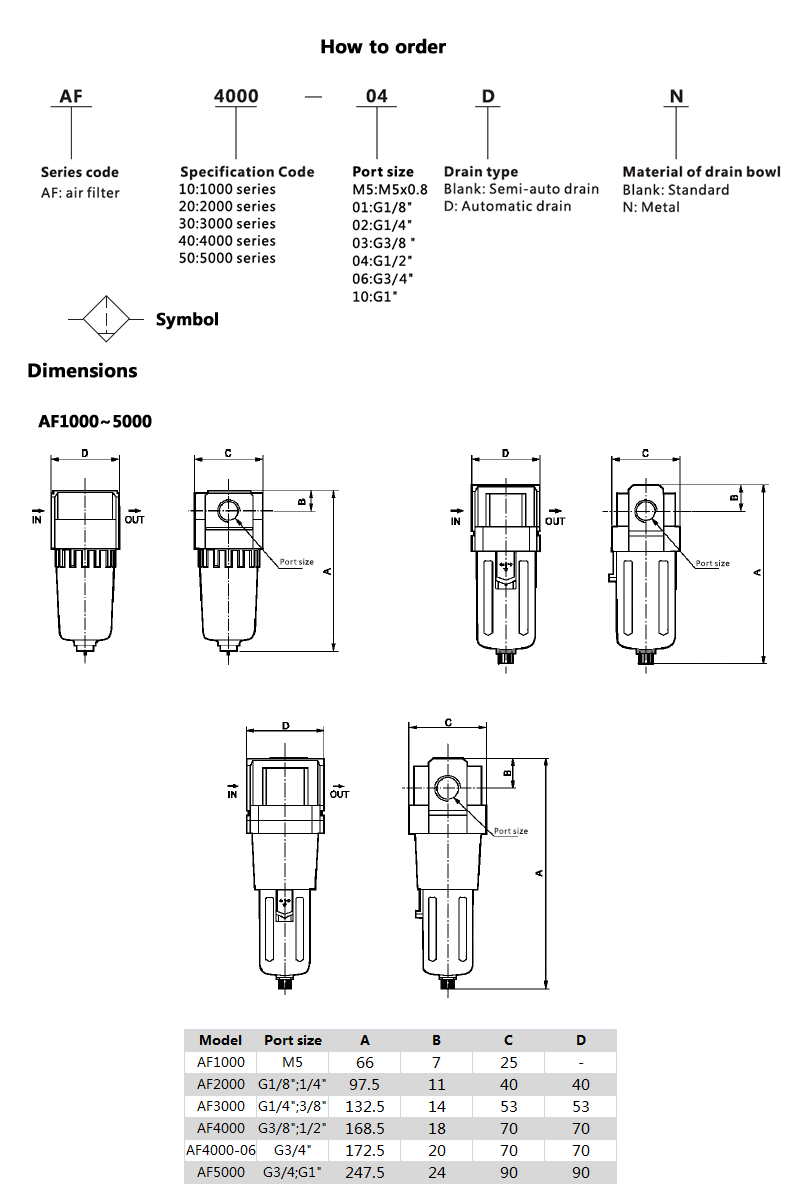

Model

AF1000-M5

AF2000-01

AF2000-02

AF3000-02

AF3000-03

AF4000-03

AF4000-04

AF4000-06

AF5000-06

AF5000-10

Port size

G1/8"

G1/4"

G3/8"

G1/4"

G3/8"

G1/2"

G3/4"

G1"

Operating mendiium

Compressed air

Grade of filteration

40μm;25μm;5μm

Pressure range

0.1~1.0MPa(14.5~145Psi)(1~10bar)

Temperature range

-10~60℃

Ensured pressure resistance

1.6MPa(232psi)(16bar)

Type of mounting

Via accessories

Assembly position

Vertical±5°

Bowl guard

Metal bowl guard

Condensate drain

Semi-auto drain;Automaric drain

Lubricant recommended

ISO VG32 or equivalent

Body material

Die casting aluminum alloy
