SU Series Standard Cylinder

Standard Cylinder Series SU
Product Features
1.The seal of piston adopts heterogenous two way seal structure.It's dimension is tight and it has the function of oil reservation.
2.It is no tie rod cylinder. The cylinder barrel is "Mickey Mouse" shape, and have good corrosion.
3.Compared with ISO1552 standard cylinder, SU series cylinder with the same bore size is shorter.
4.The buffer adjustment of cylinder is smooth and steady.
5.Mounting accessories are the same as SC series.
6.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃.

Specification

Bore size(mm)				32	40	50	63	80	100
Acting type				Double acting
Fluid				Air(to be filtered by 40µm filter element)
Mounting type		SU		Basic FA FB CA CB LB TC TCM1
		SUD,SUJ		Basic FA  LB  TC  TCM1
Operating pressure				0.1~1.0MPa
Proof pressure				1.5MPa(215psi)(15bar)
Temperature				-20~80
Speed range mm/s				30~800
Stroke tolerance				0~250(+1.0~0)   251~1000(+1.4~0)    1001~1500(+1.8~0)
Cushion type				Varriable cushion
Adjustable cushion stroke (mm)				21				28	29
Port size*				1/8"	1/4"		3/8"		1/2"

*PT thread, NPT thread and G thread are available.
Strokes

Bore size(mm)	Standard Stroke（mm）								Max.std stroke	Max. stroke
32	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500								1000	1800
40	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500,600,700,800								1200
50	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,  500,600,700,800,900,1000
63									1500
80
100

Note)Consult us for non-standard stroke.

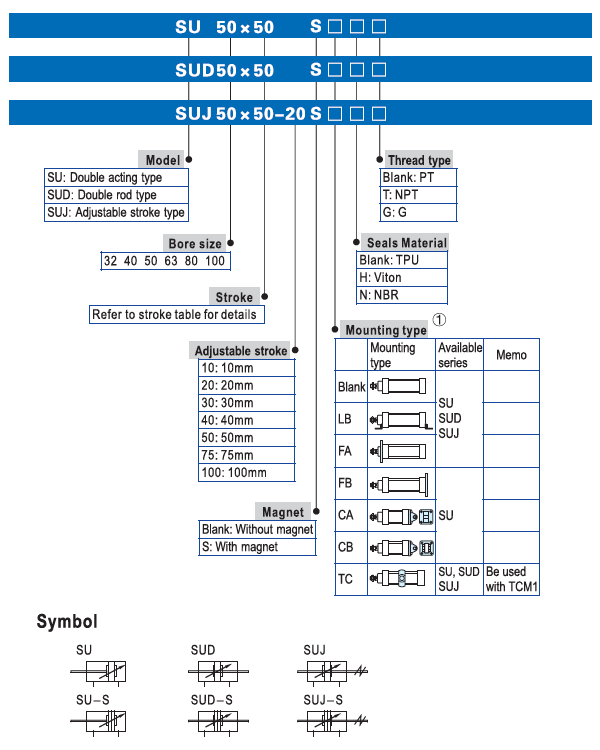

Ordering Information

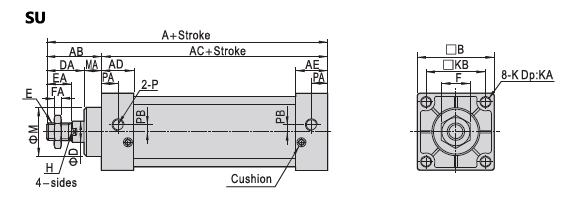

Dimension

Bore size (mm)	A	AB	AC	AD	AE	B	D	DA	E	EA	F	FA	H	M	MA
32	140	47	93	27.5	27.5	45	12	32	M10×1.25	22	17	6	10	28	15
40	142	49	93	27.5	27.5	50	16	34	M12×1.25	24	17	7	14	32	15
50	150	57	93	27.5	27.5	62	20	42	M16×1.5	32	23	8	17	38	15
63	153	57	96	27.5	27.5	75	20	42	M16×1.5	32	23	8	17	38	15
80	182	75	107	33	33	94	25	54	M20×1.5	40	26	10	22	47	21
100	188	75	113	33	33	112	25	54	M20×1.5	40	26	10	22	47	21

Bore size (mm)	K (Without TC)		K(With TC)	KA (Without TC)		KA(With TC)	KB	P	PA	PB
32	M6×1.0		M5×0.8	9.5		10	33	1/8"	14	5.5
40	M6×1.0		M5×0.8	9.5		9	37	1/4"	15	6
50	M6×1.0		M5×0.8	9.5		9.5	47	1/4"	17	8.5
63	M8×1.25		M6×1.0	9.5		7.5	56	3/8"	15	9.5
80	M10×1.5		M8×1.25	11.5		11	70	3/8"	19.5	10
100	M10×1.5		M8×1.25	11.5		11	84	1/2"	16.5	11

Remark: The dimensions of magnet type cylinder are the same as non-magnet type cylinder.

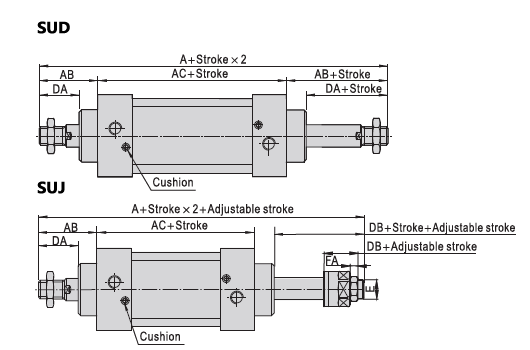

Bore size (mm)	A		AB	AC	DA	DB	E	FA
	SUD	SUJ
32	187	182	47	93	32	27	M10×1.25	6
40	191	185	49	93	34	28	M12×1.25	7
50	207	194	57	93	42	29	M16×1.5	8
63	210	197	57	96	42	29	M16×1.5	8
80	257	238.5	75	107	54	35.5	M20×1.5	10
100	263	244.5	75	113	54	35.5	M20×1.5	10

Remark:
1.The dimensions of magnet type cylinder are the same as non-magnet type cylinder.
2.The unmarked dimension is the same as SU standard type.
