DNC Series Standard Cylinder

Standard Cylinder DNC Series

Specification

Bore Size (mm)	32	40	50	63	80	100	125
Motion Pattern	Double Action
Working Medium	Fitered Air
Compression Pressure	1.5MPa
Max. Operating Pressure	1.0MPa
Min. Operating Pressure	0.1MPa
Buffer	Air Buffer(Standard)
Condition Temperature	-5~70℃
Operating Speed	50~800mm/s
Port Size	G1/8″	G1/4″		G3/8"		G1/2"

Standard Stroke(mm)

Bore Size	Standard Stroke	Buffer Stroke	Stroke Range
32	25,50,80,100,125, 160,200,250,320, 400,500	20	10~2000
40
50		22
63
80		32
100
125		35

Ordering Information

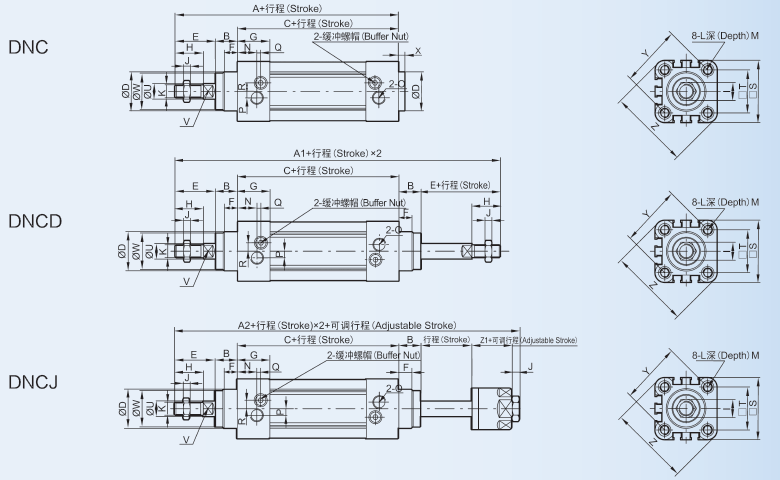

Dimension

Bore Size (mm)	A	A1	A2	B	C	D	E	F	G	H	I	J	K	L
32	142	190	185	16	94	30	33	10	25	22	17	6	M10x1.25	M6
40	159	213	207	20	105	35	34	10	29.5	24	17	7	M12x1.25	M6
50	175	244	233	27	106	40	42.5	10	32	32	23	8	M16x1.5	M8
63	190	258	247	26	122	45	42	10	36	32	23	8	M16x1.5	M8
80	214	301	288	35	127	45	53	10	37	40	26	10	M20x1.5	M10
100	229	321	308	40	137	55	52	10	39	40	26	10	M20x1.5	M10
125	277	394	378	46	160	60	71	10	43.5	54	40	10	M27x2	M12

Bore Size (mm)	M	N	O	P	Q	S	T	U	V	W	X	Y	Z	Z1
32	12	15	G1/8	5	3	6.5	32.5	12	10	28	4	46	58.7	21
40	12	17.5	G1/4	7	3	7	38	16	13	33	4	53.7	68	21
50	12	20	G1/4	7	3	9	46.5	20	17	38	4	65.8	84.5	23
63	12	22	G3/8	8	5	9	56.5	20	17	38	4	79.9	99.6	23
80	15	23	G3/8	10	5	12	72	25	22	43.5	5	101.8	123.8	29
100	15	26	G1/2	10	5	14	89	25	22	47	6	125.9	148.9	29
125	20	29	G1/2	10	5	14	110	32	27	53	7	156.9	179.6	40.5
