MHF2 Series Low Profile Air Gripper

Low Profile Air Gripper Series MHF2
Specification

Fluid		Air
Operating pressure		ø8: 0.15 to 0.7 MPa
		ø12 to 20: 0.1 to 0.7 MPa
Ambient and fluid temperature		–10 to 60C (with no condensation)
Repeatability		±0.05 mm Note 1)
Maximum operating frequency	Short stroke	120 c.p.m.
	Medium stroke	120 c.p.m.
	Long stroke	60 c.p.m.
Lubrication		Not required
Action		Double acting
Auto switch (Option) Note 2)		Solid state auto switch (3-wire, 2-wire)

Note 1) This is the value when no offset load is applied to the finger.When an offset load is applied to the finger, the maximum value is ±0.15 mm due to the influence of backlash of the rack and pinion.

Model

Action	Model	Cylinder bore (mm)	Gripping force Note1)	Opening/closing stroke (Both sides) mm	Note 2)Weight (g)	Unobstructed capacity(cm³)

			Effective gripping force per finger N			Finger open side	Finger close side

Double acting	MHF2-8D	8	19	8	65	0.7	0.6
	MHF2-8D1			16	85	1.1	1
	MHF2-8D2			32	120	2	1.9
	MHF2-12D	12	48	12	155	1.9	1.6
	MHF2-12D1			24	190	3.3	3
	MHF2-12D2			48	275	6.1	5.8
	MHF2-16D	16	90	16	350	4.9	4.1
	MHF2-16D1			32	445	8.2	7.4
	MHF2-16D2			64	650	14.9	14
	MHF2-20D	20	141	20	645	8.7	7.3
	MHF2-20D1			40	850	15.1	13.7
	MHF2-20D2			80	1,225	28	26.6

Note 1) At the pressure of 0.5 MPa, when gripping point L is 20 mm.

Note 2) Excluding the auto switch weight.

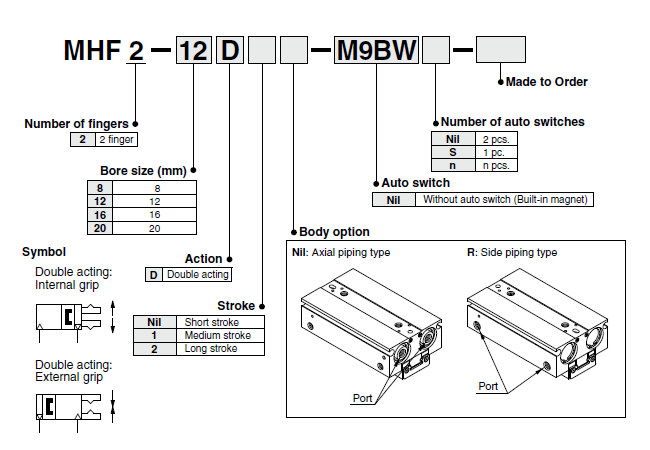

Ordering Information
