MA Series Mini Cylinder

Mini Cylinder Series MA (Stainless steel)

Specification

Bore size(mm)		16	20	25	32	40	50	63
Acting type	MSA,MTA	Single acting					-
	MA,MAD,MAJ	Double acting					-
	MAR	-	Double acting
	MAC,MACD,MACJ	-	Double acting with cushion
Fluid		Air (to be filtered by 40μm filter element)
Operating pressure	Double acting	0.1~1.0MPa (15~145psi)(1.0~10.0bar)
	Single acting	0.2~1.0MPa (28~145psi)(2.0~10.1bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature		-20~70℃
Speed range		Double acting:30~800mm/s Single acting: 50~800mm/s
Stroke tolerance			0~150	+1.0	＞	150	+1.4
				0			0
Cushion type		MAC、MACD、MACJ、Series:Adjustable cushion Other Series:Bumper
Port size Note1)		M5×0.8	1/8"				1/4"

Note1) PT thread, NPTthread and G thread are available.

Stroke

Bore size(mm)		Standard stroke(mm)	Max. std stroke	Max.stroke
MA MAC	16	25,50,75,80,100,125,150,160,175,200	200	500
	20	25,50,75,80,100,125,150,160,175,200,250,300	300	600
	25,32,40,50,63	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500	500	700
MAR	20	25,50,75,80,100,125,150,160,175,200,250,300	300	600
	25,32,40,50,63	25,50,75,80,100,125,150,160,175,200,250,300,350,400,450,500	500	700
MSA	16	25,50,75,80,100	-	-
	20,25,32,40	25,50,75,80,100,125,150	-	-
MTA	16,20,25,32,40	25,50,75,100	-	-
MAD MACD MAJ MACJ	16	25,50,75,80,100,125,150,160	-	-
	20	25,50,75,80,100,125,150,160,175,200	-	-
	25,32,40,50,63	25,50,75,80,100,125,150,160,175,200,250	-	-

Note) Consult us for non-standard stroke.

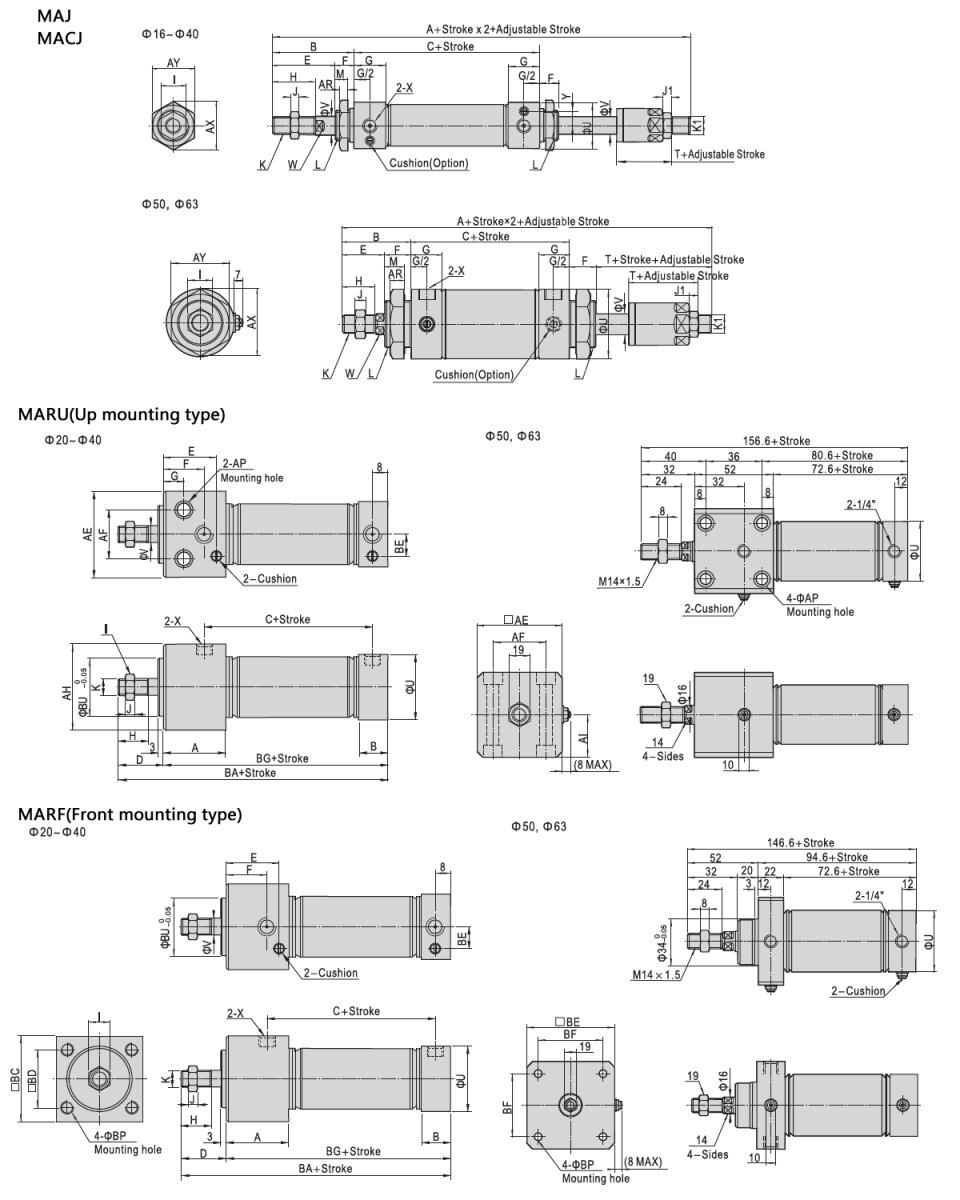

Dimensions

Bore size	A	A1	B	C	D	D1	E	F	G	H	I	J	K	L	M	P	Q	R	S	U	V	W	X	AR	AX	AY	Y
16	114	98	38	60	16	16	22	16	10	16	10	5	M6×1.0	M16×1.5	14	6	12	14	9	21	6	5	M5×0.8	6	25	22	-
20	137	116	40	76	21	12	28	12	16	20	12	6	M8×1.25	M22×1.5	10	8	16	19	12	27	8	6	1/8"	7	33	29	8.7
25	141	120	44	76	21	14	30	14	16	22	17	6	M10×1.25	M22×1.5	12	8	16	19	12	30	10	8	1/8"	7	33	29	10.2
32	147	120	44	76	27	14	30	14	16	22	17	6	M10×1.25	M24×2.0	12	10	16	25	15	35	12	10	1/8"	8	37	32	12
40	149	122	46	76	27	14	32	14	16.7	24	17	7	M12×1.25	M30×2.0	12	12	20	25	15	41.6	16	14	1/8"	9	47	41	15

Bore size	U	V
50	53	16
63	67	16

	Stroke	A			A1			B	C			D	D1	E	F	G	H	I	J	K	L	M	P	Q	R	S	U	V	W	X	AR	AX	AY
Bore size (mm)		≤50	51~100	≥100	≤50	51~100	≥100	B	≤50	51~100	≥100	D	D1	E	F	G	H	I	J	K	L	M	P	Q	R	S	U	V	W	X	AR	AX	AY
16		139	164	-	123	123	148	-	123	148	-	16	16	22	16	10	16	10	5	M6×1.0	M16×1.5	14	6	12	14	9	21	6	5	M5×0.8	6	25	22
20		162	187	212	141	141	166	191	141	166	191	21	12	28	12	16	20	12	6	M8×1.25	M22×1.5	10	8	16	19	12	27	8	6	1/8"	7	33	29
25		166	191	216	145	145	170	195	145	170	195	21	14	30	14	16	22	17	6	M10×1.25	M22×1.5	12	8	16	19	12	30	10	8	1/8"	7	33	29
32		172	197	222	145	145	170	195	145	170	195	27	14	30	14	16	22	17	6	M10×1.25	M24×2.0	12	10	16	25	15	35	12	10	1/8"	8	37	32
40		174	199	224	147	147	172	197	147	172	197	27	14	32	14	16.7	24	17	7	M12×1.25	M30×2.0	12	12	20	25	15	41.6	16	14	1/8"	9	47	41

	Stroke	A				A1				B	c				D	D1	E	F	G	H	I	J	K	L	M	P	Q	R	S	U	V	W	X	AR	AX	AY
Bore size(mm)		≤25	≤50	≤75	≤100	≤25	≤50	≤75	≤100	B	≤25	≤50	≤75	≤100	D	D1	E	F	G	H	I	J	K	L	M	P	Q	R	S	U	V	W	X	AR	AX	AY
16		129	139	154	164	113	123	138	148	38	75	85	100	110	16	16	22	16	10	16	10	5	M6×1.0	M16×1.5	14	6	12	14	9	21	6	5	M5×0.8	6	25	22
20		152	162	177	187	131	141	156	166	40	91	101	116	126	21	12	28	12	16	20	12	6	M8×1.25	M22×1.5	10	8	16	19	12	27	8	6	1/8"	7	33	29
25		156	166	181	191	135	145	160	170	44	91	101	116	126	21	14	30	14	16	22	17	6	M10×1.25	M22×1.5	12	8	16	19	12	30	10	8	1/8"	7	33	29
32		162	172	192	192	135	145	165	165	44	91	101	121	121	27	14	30	14	16	22	17	6	M10×1.25	M24×2.0	12	10	16	25	15	35	12	10	1/8"	8	37	32
40		164	174	194	204	137	147	167	177	46	91	101	121	131	27	14	32	14	16.7	24	17	7	M12×1.25	M30×2.0	12	12	20	25	15	41.6	16	14	1/8"	9	47	41

	Stroke	A	B	C	E	F	G	H	I	J	K	L	M	U	V	W	X	AR	AX	AY	Y
Bore size(mm)		A	B	C	E	F	G	H	I	J	K	L	M	U	V	W	X	AR	AX	AY	Y
16		136	38	60	22	16	10	16	10	5	M6×1.0	M16×1.5	14	21	6	5	M5×0.8	6	25	22	-
20		156	40	76	28	12	16	20	12	6	M8×1.25	M22×1.5	10	27	8	6	1/8"	7	33	29	8.7
25		164	44	76	30	14	16	22	17	6	M10×1.25	M22×1.5	12	30	10	8	1/8"	7	33	29	10.2
32		164	44	76	30	14	16	22	17	6	M10×1.25	M24×2.0	12	35	12	10	1/8"	8	37	32	12
40		168	46	76	32	14	16.7	24	17	7	M12×1.25	M30×2.0	12	41.6	16	14	1/8"	9	47	41	15
50		199	52	95	32	20	23	24	19	8	M14×1.5	M36×2.0	15	53	16	14	1/4"	11	53	46	-
63		199	52	95	32	20	23	24	19	8	M14×1.5	M36×2.0	15	67	16	14	1/4"	11	53	46	-
