Shock Absorbers AC Series (Miniature)
Shock Absorbers AC Series (Miniature)
Shock Absorbers-AC Series(Miniature)

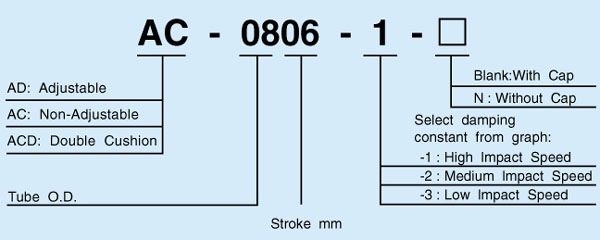

Ordering Information
.jpg)
Specifications
Dimensions
Ordering Information
Specifications
| Model |
Stroke (mm) |
Max.Nm Per Cycle (Et) |
Max.Nm Per Hour (Etc) |
Max. Effective Mass (Me) kg |
Max. Impact Speed(v) m/s |
Operating Temperature (℃) |
Weight (g) |
|
| AC-0806-1 | 6 | 2 | 8800 | 0.5 | 2 | -10~+80 | 11 | |
| AC-0806-2 | 6 | 2 | 8800 | 2 | 1 | -10~+80 | 11 | |
| AC-0806-3 | 6 | 2 | 8800 | 6 | 0.5 | -10~+80 | 11 | |
| AC-1005-1 | 5 | 3 | 10800 | 1 | 3 | -10~+80 | 14 | |
| AC-1005-2 | 5 | 3 | 10800 | 3 | 1.5 | -10~+80 | 14 | |
| AC-1005-3 | 5 | 3 | 10800 | 7 | 0.8 | -10~+80 | 14 | |
| AC-1008-1 | 8 | 4 | 15200 | 2 | 3 | -10~+80 | 20 | |
| AC-1008-2 | 8 | 4 | 15200 | 4 | 1.5 | -10~+80 | 20 | |
| AC-1008-3 | 8 | 4 | 15200 | 9 | 0.8 | -10~+80 | 20 | |
| AC-1210-1 | 10 | 5 | 17640 | 5 | 3 | -10~+80 | 31.5 | |
| AC-1210-2 | 10 | 5 | 17640 | 10 | 1.5 | -10~+80 | 31.5 | |
| AC-1210-3 | 10 | 5 | 17640 | 30 | 0.8 | -10~+80 | 31.5 | |
Dimensions
| Model | Thread | Stroke (mm) | A | B | C | D | E | F | G | H | I | J | K |
| AC-0806-1 | M8×1.0 | 6 | 50 | 38 | 6.6 | 2.8 | 6 | 33 | - | 11 | 3 | - | - |
| AC-0806-2 | M8×1.0 | 6 | 50 | 38 | 6.6 | 2.8 | 6 | 33 | - | 11 | 3 | - | - |
| AC-0806-3 | M8×1.0 | 6 | 50 | 38 | 6.6 | 2.8 | 6 | 33 | - | 11 | 3 | - | - |
| AC-1005-1 | M10×1.0 | 5 | 38.7 | 27.7 | 8.6 | 2.8 | 6 | 22.9 | - | 12.7 | 3 | - | - |
| AC-1005-2 | M10×1.0 | 5 | 38.7 | 27.7 | 8.6 | 2.8 | 6 | 22.9 | - | 12.7 | 3 | - | - |
| AC-1005-3 | M10×1.0 | 5 | 38.7 | 27.7 | 8.6 | 2.8 | 6 | 22.9 | - | 12.7 | 3 | - | - |
| AC-1008-1 | M10×1.0 | 8 | 57 | 43 | 8.6 | 3 | 6 | 37.9 | - | 12.7 | 3 | - | - |
| AC-1008-2 | M10×1.0 | 8 | 57 | 43 | 8.6 | 3 | 6 | 37.9 | - | 12.7 | 3 | - | - |
| AC-1008-3 | M10×1.0 | 8 | 57 | 43 | 8.6 | 3 | 6 | 37.9 | - | 12.7 | 3 | - | - |
| AC-1210-1 | M12×1.0 | 10 | 69.5 | 50 | 10.3 | 3 | 9.5 | 45.5 | - | 14 | 4 | - | - |
| AC-1210-2 | M12×1.0 | 10 | 69.5 | 50 | 10.3 | 3 | 9.5 | 45.5 | - | 14 | 4 | - | - |
| AC-1210-3 | M12×1.0 | 10 | 69.5 | 50 | 10.3 | 3 | 9.5 | 45.5 | - | 14 | 4 | - | - |
