VACUUM EJECTOR ZH05~13BS/BL-01
Box Type (Built-in Silencer)/Body Ported Type
Nozzle diameter: ø0.5, ø0.7, ø1.0, ø1.3
Type S: Standard type, L: Large flow type
Characteristic
*Compact and lightweight: The nozzle and the body, which have been made into a composite resin construction, are compact and lightweight.*Box type(Built-in silencer)/Body ported--Two types are available in the series: the box type with a silencer exhaust, and the body ported type, with an individual exhaust.
*One-touch and screw-in connections can be combined: To suit the operating conditions, port connections can be combined with a choice of One-touch and screw-in connections.
*Body can be mounted and secured: The body ported type is also provided with mounting holes for securing the body.
How to Order
.jpg)
Combination of Connection
| Body type | No. | SUP | VAC | EXH |
| Box type (Built-in silencer) | 1 | One-touch | One-touch | ---- |
| 2 | One-touch | Screw-in | ---- | |
| 3 | Screw-in | Screw-in | ---- | |
| Body ported type (Without silencer) | 1 | One-touch | One-touch | One-touch |
| 2 | One-touch | Screw-in | One-touch | |
| 3 | Screw-in | Screw-in | Screw-in |
Port Size
| Model | Connection(One-touch/Screw-in) | ||
| SUP | VAC | EXH | |
| ZH05B | Φ6/Rc1/8 | Φ6/Rc1/8 | ---- |
| ZH07B | |||
| ZH10B | |||
| ZH13B | Φ8/Rc1/8 | Φ10/Rc1/4 | |
| ZH05D | Φ6/Rc1/8 | Φ6/Rc1/8 | Φ6/Rc1/8 |
| ZH07D | |||
| ZH10D | Φ6/Rc1/8 | Φ6/Rc1/8 | Φ8/Rc1/8 |
| ZH13D | Φ8/Rc1/8 | Φ10/Rc1/4 | Φ10/Rc1/4 |
| ZH15D | Φ10/Rc1/4 | Φ12/Rc3/8 | Φ12/Rc3/8 |
| ZH18D | Φ12/Rc3/8 | ||
| ZH20D | Φ12/Rc3/8 | Φ16/Rc1/2 | Φ16/Rc1/2 |
Model Specification
| Model | Nozzle Dia.(mm) | Body Type | Max.Vacuum Pressure(kPa) | Max.Suction Flow Rate(L/min) | Air Consumption (L.min) | Supply Pressure (MPa) | ||
| Type S | Type L | Type S | Type L | Type S/L | ||||
| ZH05B□ | 0.5 | Box type(Built-in silencer) | -88 | -48 | 5 | 8 | 13 | 0.45 |
| ZH07B□ | 0.7 | 12 | 20 | 23 | ||||
| ZH10B□ | 1.0 | 24 | 34 | 46 | ||||
| ZH13B□ | 1.3 | 40 | 70 | 78 | ||||
Construction
.jpg)

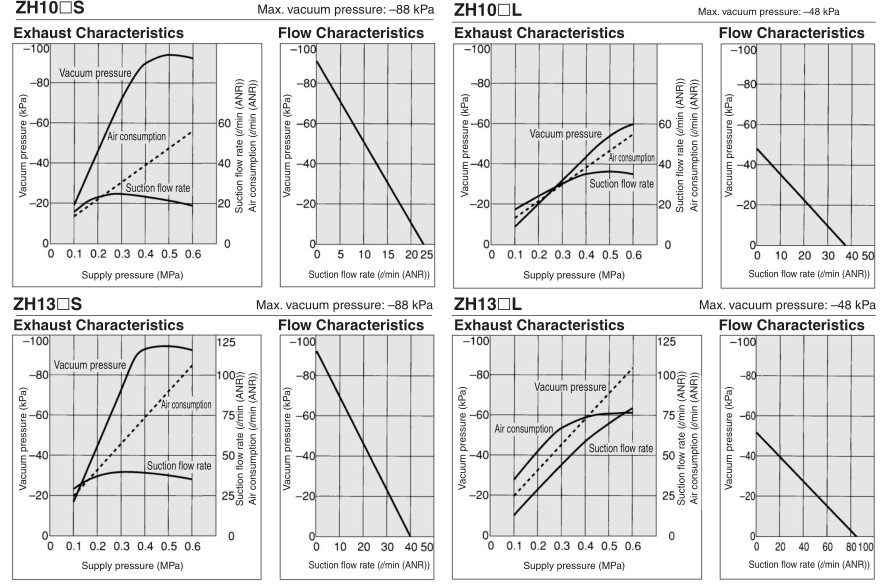

Exhaust Characteristics/Flow Characteristics
.jpg)
.jpg)
Dimension
.jpg)
| Model | A | B | C | D | E | F | G | H | I | J | ΦK | L | M | ΦN | O | P |
| ZH05BS-01-01 | 67.5 | Rc1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | Rc1/8 | 5.8 | 2 | 38.5 |
| ZH05BL-01-01 | 67.5 | Rc1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | Rc1/8 | 5.8 | 2 | 38.5 |
| ZH07BS-01-01 | 67.5 | Rc1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | Rc1/8 | 5.8 | 2 | 38.5 |
| ZH07BL-01-01 | 67.5 | Rc1/8 | 29.5 | 16 | 12 | 28 | 5 | 47 | 57 | 12 | 3.2 | 31.5 | Rc1/8 | 5.8 | 2 | 38.5 |
| ZH10BS-01-01 | 70.5 | Rc1/8 | 30.5 | 18 | 12 | 29 | 5 | 50 | 60 | 12 | 3.2 | 33.5 | Rc1/8 | 5.8 | 2 | 39.5 |
| ZH10BL-01-01 | 70.5 | Rc1/8 | 30.5 | 18 | 12 | 29 | 5 | 50 | 60 | 12 | 3.2 | 33.5 | Rc1/8 | 5.8 | 2 | 39.5 |
| ZH13BS-01-02 | 86.5 | Rc1/8 | 39 | 23 | 14 | 35 | 7 | 61 | 75 | 17 | 4.2 | 36.5 | Rc1/4 | 7.5 | 3 | 50 |
| ZH13BL-01-02 | 86.5 | Rc1/8 | 39 | 23 | 14 | 35 | 7 | 61 | 75 | 17 | 4.2 | 36.5 | Rc1/4 | 7.5 | 3 | 50 |
