Shock Absorber AC-K Series - Self Compensation
Shock Absorber AC-K Series - Self Compensation
Shock Absorber AC-K Series - Self Compensation
Ordering Information
.jpg)
Specification
| Model |
Stroke (mm) |
Max.Nm Per Cycle (Et) |
Max.Nm Per Hour (Etc) | Max. Effective Mass (Me) kg |
Max. Impact Speed(v) m/s |
Operating Temperature (℃) |
Weight (g) |
||
| AC-1415-6K | 15 | 9.8 | 35280 | 30 | 1 | -10~+80 | 80 | ||
| AC-1415-7K | 15 | 9.8 | 35280 | 15 | 1.5 | -10~+80 | 80 | ||
| AC-2030-5K | 30 | 44 | 26460 | 60 | 1.2 | -10~+80 | 185 | ||
| AC-2030-6K | 30 | 44 | 26460 | 30 | 1.7 | -10~+80 | 185 | ||
| AC-2030-7K | 30 | 44 | 26460 | 15 | 2.4 | -10~+80 | 185 | ||
| AC-2030-16K | 30 | 44 | 26460 | 5 | 4.2 | -10~+80 | 205 | ||
| AC-2030-18K | 30 | 44 | 26460 | 3 | 6 | -10~+80 | 205 | ||
| AC-2050-11K | 50 | 59 | 35280 | 30 | 2 | -10~+80 | 250 | ||
| AC-2050-12K | 50 | 59 | 35280 | 15 | 2.8 | -10~+80 | 250 | ||
| AC-2050-13K | 50 | 59 | 35280 | 8 | 3.8 | -10~+80 | 250 | ||
| AC-2050-16K | 50 | 59 | 35280 | 5 | 5 | -10~+80 | 250 | ||
| AC-2050-17K | 50 | 59 | 35280 | 3 | 6.8 | -10~+80 | 235 | ||
| AC-2020-2K | 20 | 36 | 22000 | 27 | 2 | -10~+80 | 170 | ||
| AC-2025-2K | 25 | 40 | 24200 | 35 | 2 | -10~+80 | 180 | ||

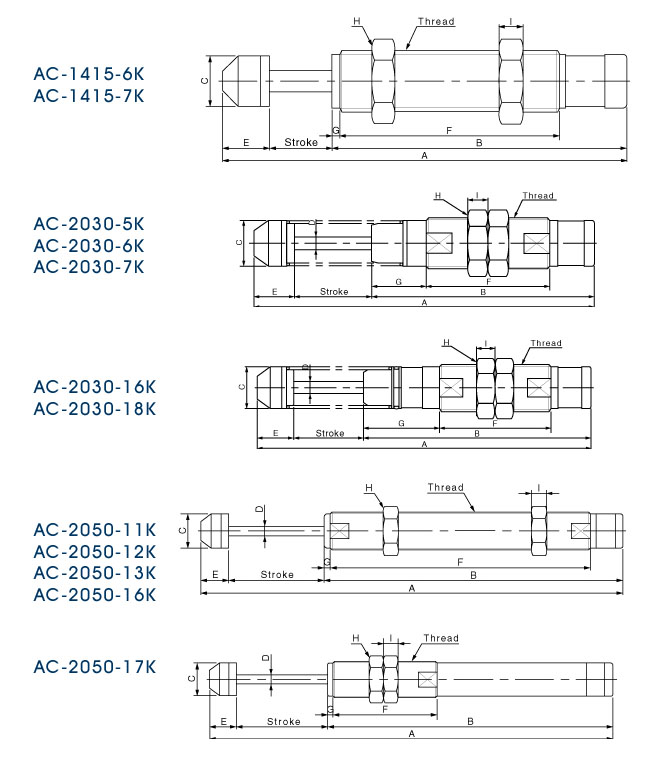

Dimension
| Model | Thread | Stroke (mm) | A | B | C | D | E | F | G | H | I | J | K | |
| AC-1415-6K | M14×1.5 | 15 | 94.7 | 69.2 | 12 | 4 | 10.5 | 53 | 2 | 19 | 5 | - | - | |
| AC-1415-7K | M14×1.5 | 15 | 94.7 | 69.2 | 12 | 4 | 10.5 | 53 | 2 | 19 | 5 | - | - | |
| AC-2030-5K | M20×1.5 | 30 | 133.7 | 86 | 17.8 | 5 | 17.7 | 47.6 | 21 | 26 | 7 | 18.2 | 10 | |
| AC-2030-6K | M20×1.5 | 30 | 133.7 | 86 | 17.8 | 5 | 17.7 | 47.6 | 21 | 26 | 7 | 18.2 | 10 | |
| AC-2030-7K | M20×1.5 | 30 | 133.7 | 86 | 17.8 | 5 | 17.7 | 47.6 | 21 | 26 | 7 | 18.2 | 10 | |
| AC-2030-16K | M20×1.5 | 30 | 145.5 | 97.8 | 17.8 | 5 | 17.7 | 47.6 | 32.7 | 26 | 7 | 18.2 | 10 | |
| AC-2030-18K | M20×1.5 | 30 | 145.5 | 97.8 | 17.8 | 5 | 17.7 | 47.6 | 32.7 | 26 | 7 | 18.2 | 10 | |
| AC-2050-11K | M20×1.5 | 50 | 222 | 156.2 | 17.8 | 5 | 15.8 | 136.5 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2050-12K | M20×1.5 | 50 | 222 | 156.2 | 17.8 | 5 | 15.8 | 136.5 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2050-13K | M20×1.5 | 50 | 222 | 156.2 | 17.8 | 5 | 15.8 | 136.5 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2050-16K | M20×1.5 | 50 | 222 | 156.2 | 17.8 | 5 | 15.8 | 136.5 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2050-17K | M20×1.5 | 50 | 221.8 | 156 | 17.8 | 5 | 15.8 | 60 | 4 | 26 | 7 | 18.2 | 10 | |
| AC-2020-2K | M20×1.5 | 20 | 129.3 | 95 | 18 | 5 | 15.8 | 74.5 | 3.8 | 26 | 7 | - | - | |
| AC-2025-2K | M20×1.5 | 25 | 140.4 | 100 | 18 | 5 | 15.8 | 81 | 2.7 | 26 | 7 | - | - | |
