ZU

VACUUM EJECTOR ZU SERIES
In-line Type

Characteristic

*Space-saving ejector that can be installed in-line with the piping
*Vacuum port and supply port are located collinearly to facilitate piping
*Light-weight construction achieved through the use of a resin body
*Nozzle diameter ø0.5: 6.5 g, ø0.7: 7.0 g
* The white color matches bright operating environments
*Built-in One-touch fittings (copper-free measures implemented)


How to Order




Construction




Specification

Model	ZU
Fluid	Air
Max.Operating Pressure	0.7MPa
Standard Supply Pressure	0.45MPa
Operating Temperature Range	5~60℃(No Freezing)
Applicable Tubing O.D.	Φ6mm(SUP port and VAC port)

Model

Model	Nozzle Dia. (mm)	Flow Rate  (L/min)	Vacuum Pressure (-kPa)	Air Consumption (L/min)	Supply Pressure  (MPa)
ZU05S	0.5	7	85	9.5	0.45
ZU05L	0.5	12	48	9.5	0.45
ZU07S	0.7	12	85	19	0.45
ZU07L	0.7	21	48	19	0.45

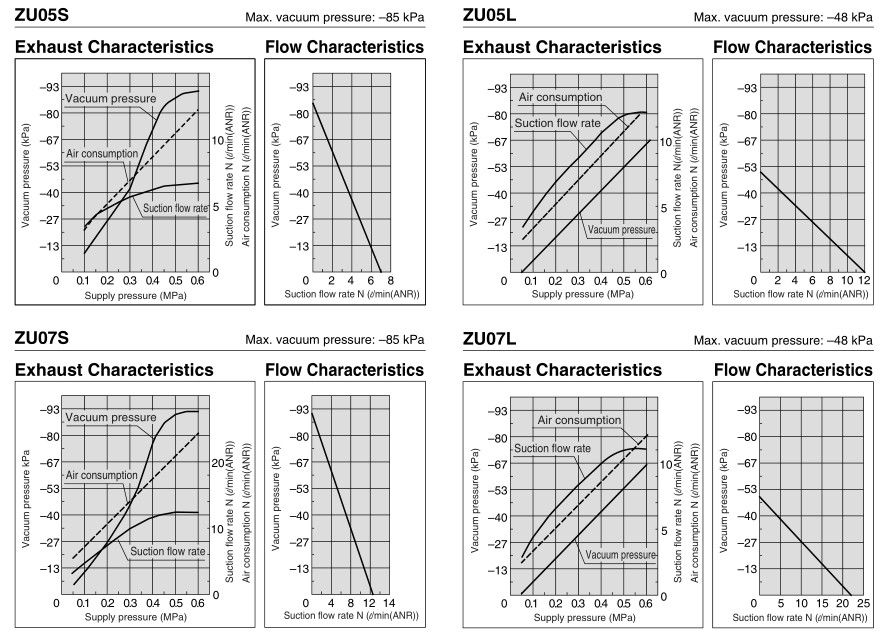

Exhaust Characteristics/Flow Characteristic




Dimension
