MHZ2 Series Air Gripper

Air Gripper Series MHZ2

Specification

Fluid			Air
Operating pressure	Double acting		ø6: 0.15 to 0.7 MPa ø10: 0.2 to 0.7 MPa ø16 to ø40: 0.1 to 0.7 Mpa


	Single acting	Normally open	ø6: 0.3 to 0.7 MPa ø10: 0.35 to 0.7 MPa ø16 to ø40: 0.25 to 0.7 Mpa

		Normally closed

Ambient and fluid temperature			–10 to 60°C
Repeatability			ø6 to ø25: ±0.01 mm ø32, ø40: ±0.02 mm

Max. operating frequency			ø6 to ø25: 180 c.p.m. ø32, ø40: 60 c.p.m.

Lubrication			Not required
Action			Double acting/Single acting
Auto switch (Option)			Solid state auto switch (3-wire, 2-wire)

∗ Use the gripper with dust cover when used in a place where there may be dust.
Model

Action		Model	Bore size (mm)	Gripping force Note)		Opening/ Closing (Both sides) (mm)	Weight (g)
				Gripping force per finger Effective value (N)
				Gripping force per finger Effective value (N)
				External	Internal
Double Acting		MHZ2-6D	6	3.3	6.1	4	27
		MHZ2-10D(N)	10	11	17	4	55
		MHZ2-16D(N)	16	34	45	6	115
		MHZ2-20D(N)	20	42	66	10	230
		MHZ2-25D(N)	25	65	104	14	420
		MHZ2-32D	32	158	193	22	715
		MHZ2-40D	40	254	318	30	1275
Single Acting	Normally open	MHZ2-6S	6	1.9	-	4	27
		MHZ2-10S(N)	10	7.1		4	55
		MHZ2-16S(N)	16	27		6	115
		MHZ2-20S(N)	20	33		10	235
		MHZ2-25S(N)	25	45		14	425
		MHZ2-32S	32	131		22	760
		MHZ2-40S	40	217		30	1370
	Normally closed	MHZ2-6C	6	-	3.7	4	27
		MHZ2-10C(N)	10		13	4	55
		MHZ2-16C(N)	16		38	6	115
		MHZ2-20C(N)	20		57	10	235
		MHZ2-25C(N)	25		83	14	425
		MHZ2-32C	32		161	22	760
		MHZ2-40C	40		267	30	1370

Note 1) Values based on pressure of 0.5 MPa, gripping point L = 20 mm, at center of stroke.

Note 2) Values excluding weight of auto switch.

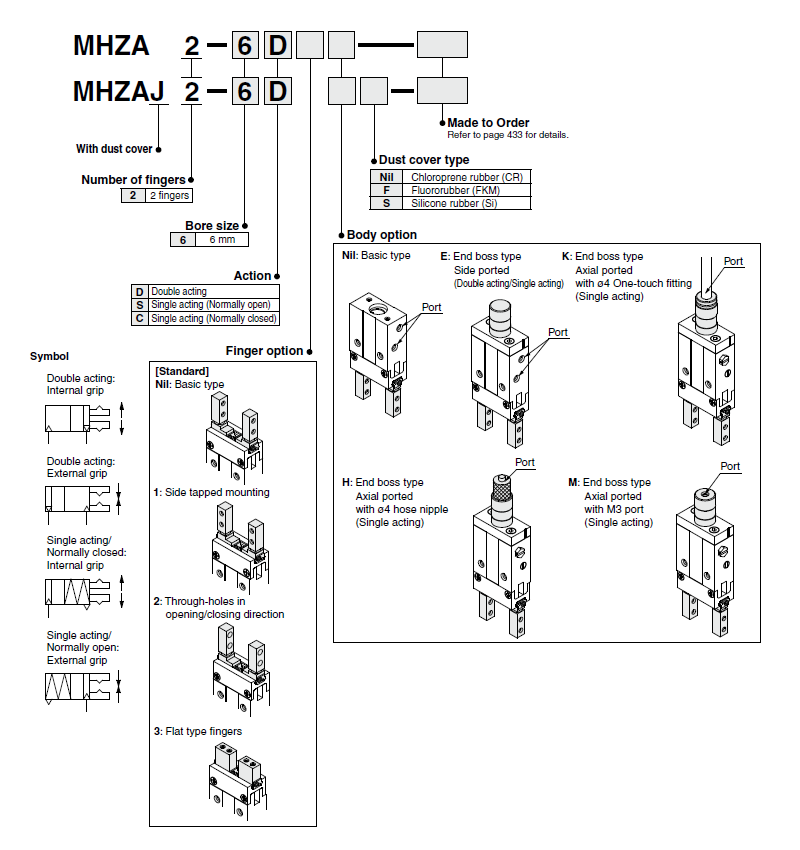

Ordering Information

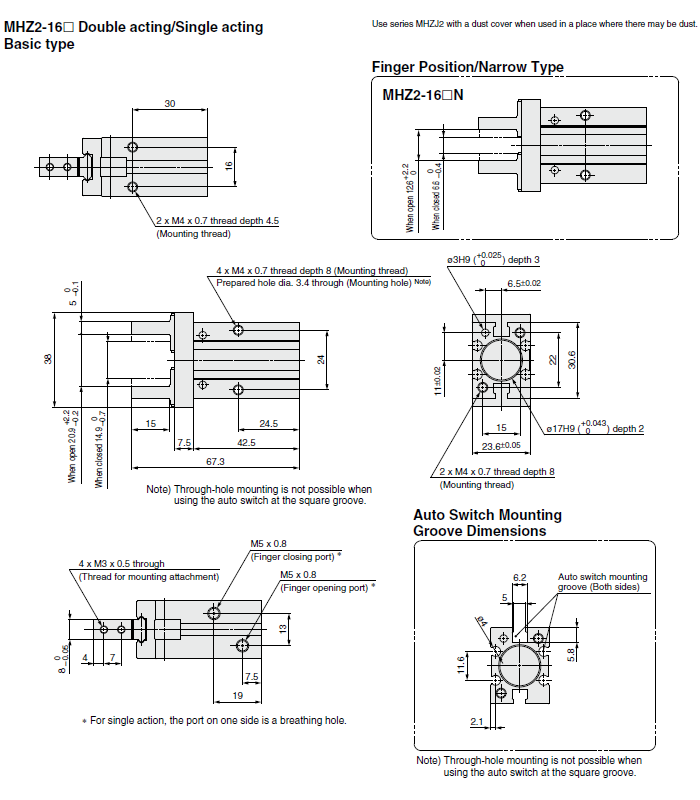

Dimension

MHZA2 /MHZAJ2
Specification

Fluid			Air
Operating pressure	Double acting		0.15 to 0.7 MPa
	Single acting	Normally open	0.3 to 0.7 MPa
		Normally closed
Ambient and fluid temperature			–10 to 60°C
Repeatability			±0.01 mm
Max. operating frequency			180 c.p.m.
Lubrication			Not required
Action			Double acting/Single acting

∗ Use the gripper with dust cover when used in a place where there may be dust.
Model

Action		Model	Bore size (mm)	Gripping force Note)		Opening/ Closing (Both sides) (mm)	Weight (g)
				Gripping force per finger Effective value (N)

				External	Internal
Double acting		MHZA2-6D	6	3.3	6.1	4	26
		MHZAJ2-6D	6			4	27
Single acting	Normally open	MHZA2-6S	6	1.9	-	4	26
		MHZAJ2-6S	6			4	27
	Normally closed	MHZA2-6C	6	-	3.7	4	26
		MHZAJ2-6C	6			4	27

Ordering Information

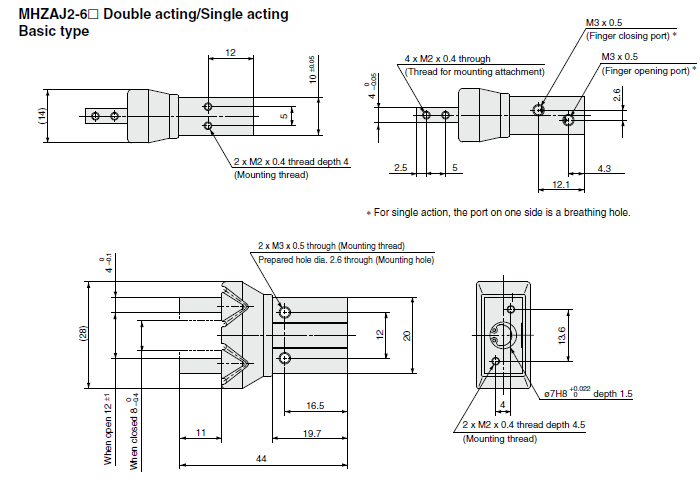

Dimensions
