MGPM Series Compact Guide Cylinder

Compact Guide Cylinder Series MGPM
Specification

Bore size

ø12

ø16

ø20

ø25

ø32

ø40

ø50

ø63

ø80

ø100

Action

Double acting

Fluid

Air

Proof pressure

1.5 Mpa

Maximum operating pressure

1.0 Mpa

Minimum operating pressure

0.12 Mpa

0.1 Mpa

Ambient and fluid temperature

–10 to 60°C (No freezing)

Piston speed Note)

50 to 500 mm/s

51 to 400 mm/s

Cushion

Rubber bumper on both ends

Lubrication

Not required (Non-lube)

Stroke length tolerance

+1.5 mm~0mm

Note) Maximum speed with no load.

Strokes

Bore size (mm)		Standard stroke (mm)
12, 16		10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250
20, 25		20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400
32 to 100		25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400

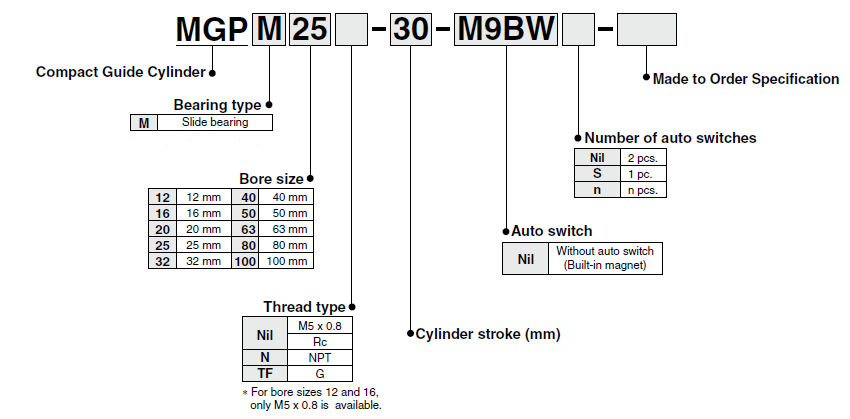

Ordering Information

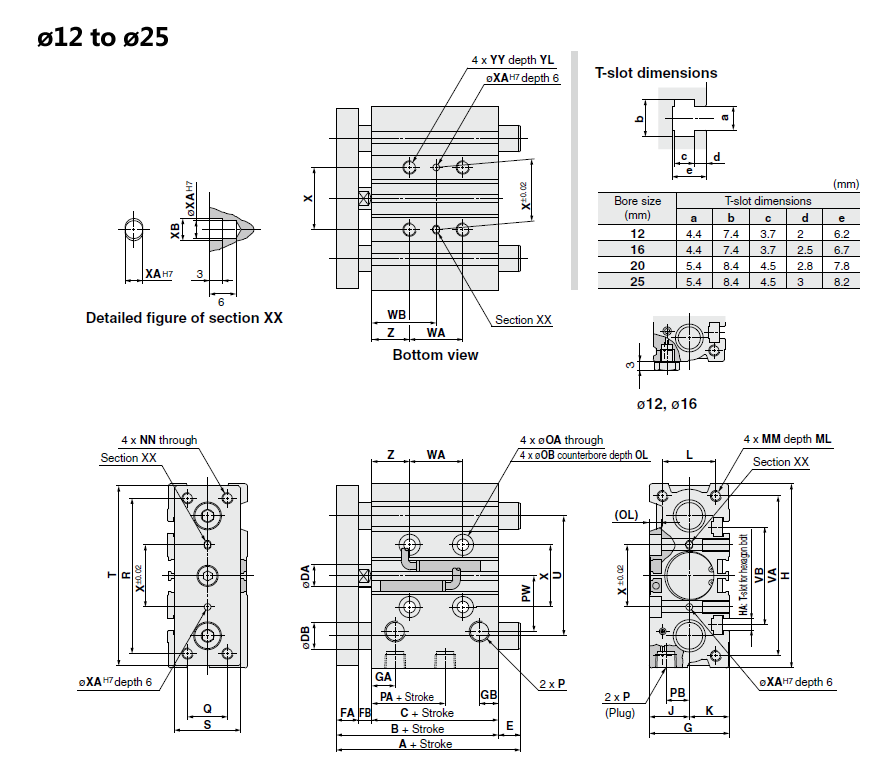

Dimensions

For bore sizes with ø12 and ø16 only, M5 x 0.8 is available.
Rc, NPT, G port can be selected for bore sizes with ø20 or more.

Bore size (mm)	Standard stroke (mm)	A				B	C	DA	DB	E				FA	FB	G	GA	GB
		50 st or less	Over 50 st to 100 st	Over 100st to 200st	Over 200 st					50 st or less	Over 50 st to 100 st	Over 100st to 200st	Over 200 st
		50 st or less	Over 50 st to 100 st	Over 100st to 200st	Over 200 st					50 st or less	Over 50 st to 100 st	Over 100st to 200st	Over 200 st
12	10, 20, 30, 40, 50, 75,100, 125, 150, 175, 200, 250	42	60.5	85	85	42	29	6	8	0	18.5	43	43	8	5	26	11	7.5
16	10, 20, 30, 40, 50, 75,100, 125, 150, 175, 200, 250	46	64.5	95	95	46	33	8	10	0	18.5	49	49	8	5	30	11	8
20	20, 30, 40, 50, 75, 100,125, 150, 175, 200,250, 300, 350, 400	53	84.5	84.5	122	53	37	10	12	0	31.5	31.5	69	10	6	36	10.5	8.5
25		53.5	85	85	122	53.5	37.5	12	16	0	31.5	31.5	68.5	10	6	42	11.5	9

Bore size (mm)	H	HA	J	K	L	MM	ML	NN	OA	OB	OL	P			PA	PB	PW	Q	R	S
												Nil	N	TF
												Nil	N	TF
12	58	M4	13	13	18	M4 x 0.7	10	M4 x 0.7	4.3	8	4.5	M5 x 0.8	-	-	13	8	18	14	48	22
16	64	M4	15	15	22	M5 x 0.8	12	M5 x 0.8	4.3	8	4.5	M5 x 0.8	-	-	15	10	19	16	54	25
20	83	M5	18	18	24	M5 x 0.8	13	M5 x 0.8	5.4	9.5	5.5	Rc 1/8	NPT 1/8	G 1/8	12.5	10.5	25	18	70	30
25	93	M5	21	21	30	M6 x 1.0	15	M6 x 1.0	5.4	9.5	5.5	Rc 1/8	NPT 1/8	G 1/8	12.5	13.5	30	26	78	38

Bore size (mm)	T	U	VA	VB	WA					WB					X	XA	XB	YY	YL	Z
					30 st or less	Over 30 st to 100 st	Over 100st to 200st	Over 200 st to 300 st	Over 300 st	30 st or less	Over 30 st to 100 st	Over 100st to 200st	Over 200 st to 300 st	Over 300 st
					30 st or less	Over 30 st to 100 st	Over 100st to 200st	Over 200 st to 300 st	Over 300 st	30 st or less	Over 30 st to 100 st	Over 100st to 200st	Over 200 st to 300 st	Over 300 st
12	56	41	50	37	20	40	110	200	-	15	25	60	105	-	23	3	3.5	M5 x 0.8	10	5
16	62	46	56	38	24	44	110	200	-	17	27	60	105	-	24	3	3.5	M5 x 0.8	10	5
20	81	54	72	44	24	44	120	200	300	29	39	77	117	167	28	3	3.5	M6 x 1.0	12	17
25	91	64	82	50	24	44	120	200	300	29	39	77	117	167	34	4	4.5	M6 x 1.0	12	17

Choice of Rc, NPT, G port is possible.

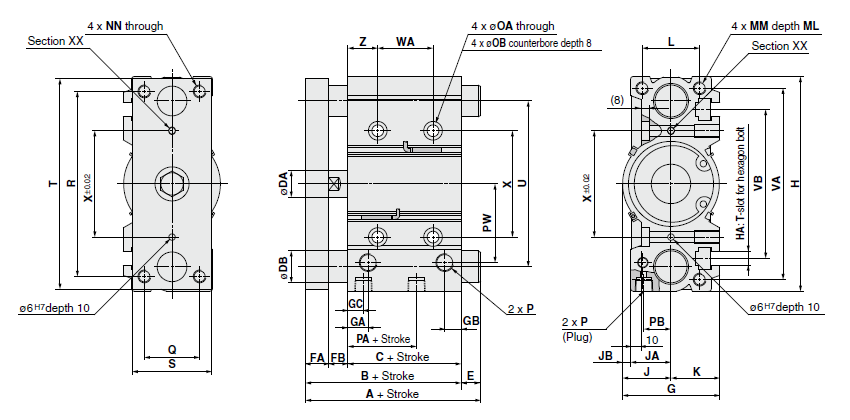

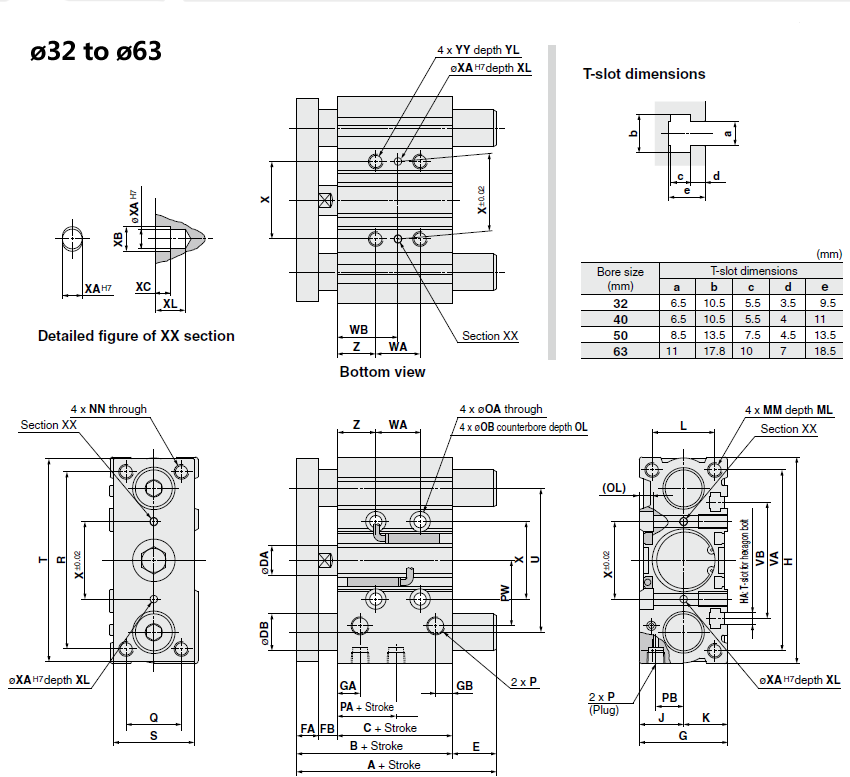

Bore size (mm)	Standard stroke (mm)	A			B	C	DA	DB	E			FA	FB	G	GA	GB	H	HA	J
		50 st or less	Over 50 st to 200 st	Over 200 st					50 st or less	Over 50 st to 200 st	Over 200 st
		50 st or less	Over 50 st to 200 st	Over 200 st					50 st or less	Over 50 st to 200 st	Over 200 st
32	25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400	97	102	140	59.5	37.5	16	20	37.5	42.5	80.5	12	10	48	12.5	9	112	M6	24
40		97	102	140	66	44	16	20	31	36	74	12	10	54	14	10	120	M6	27
50		106.5	118	161	72	44	20	25	34.5	46	89	16	12	64	14	11	148	M8	32
63		106.5	118	161	77	49	20	25	29.5	41	84	16	12	78	16.5	13.5	162	M10	39

Bore size (mm)	K	L	MM	ML	NN	OA	OB	OL	P			PA	PB	PW	Q	R	S	T	U	VA
									Nil	N	TF
									Nil	N	TF
32	24	34	M8 x 1.25	20	M8 x 1.25	6.6	11	7.5	Rc 1/8	NPT 1/8	G 1/8	7	15	35.5	30	96	44	110	78	98
40	27	40	M8 x 1.25	20	M8 x 1.25	6.6	11	7.5	Rc 1/8	NPT 1/8	G 1/8	13	18	39.5	30	104	44	118	86	106
50	32	46	M10 x 1.5	22	M10 x 1.5	8.6	14	9	Rc 1/4	NPT 1/4	G 1/4	9	21.5	47	40	130	60	146	110	130
63	39	58	M10 x 1.5	22	M10 x 1.5	8.6	14	9	Rc 1/4	NPT1/4	G 1/4	14	28	58	50	130	70	158	124	142

Choice of Rc, NPT, G port is possible.

Bore size (mm)	Standard stroke (mm)	A			B	C	DA	DB	E			FA	FB	G	GA	GB	GC	H
		50 st or less	Over 50 st to 200 st	Over 200 st					50 st or less	Over 50 st to 200 st	Over 200 st

80	25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400	115	142	193	96.5	56.5	25	30	18.5	45.5	96.5	22	18	91.5	19	15.5	14.5	202
100		137	162	203	116	66	30	36	21	46	87	25
