KQ2H-U
KQ2H-U
Uni One-touch fitting
Male Connector KQ2H-U
Characteristic
Can be installed to various threads, such as NPT,PF,PT,BSP etc.
Space-saving.
Specifications
| Fluid | Air/water |
| Material | Brass |
| Maximum operating pressure | 1.0MPa |
| Operating Vacuum pressure | -100KPa |
| Proof Pressure | 3.0MPa |
| Ambient and fluid temperature | Air:-5～60℃,Water:0～40℃ |
| Tubing material | Nylon,Softnylon,Polyurethane |
| Tubing O.D. | ø4,ø6,ø8,ø10,ø12,ø16 |
How to order

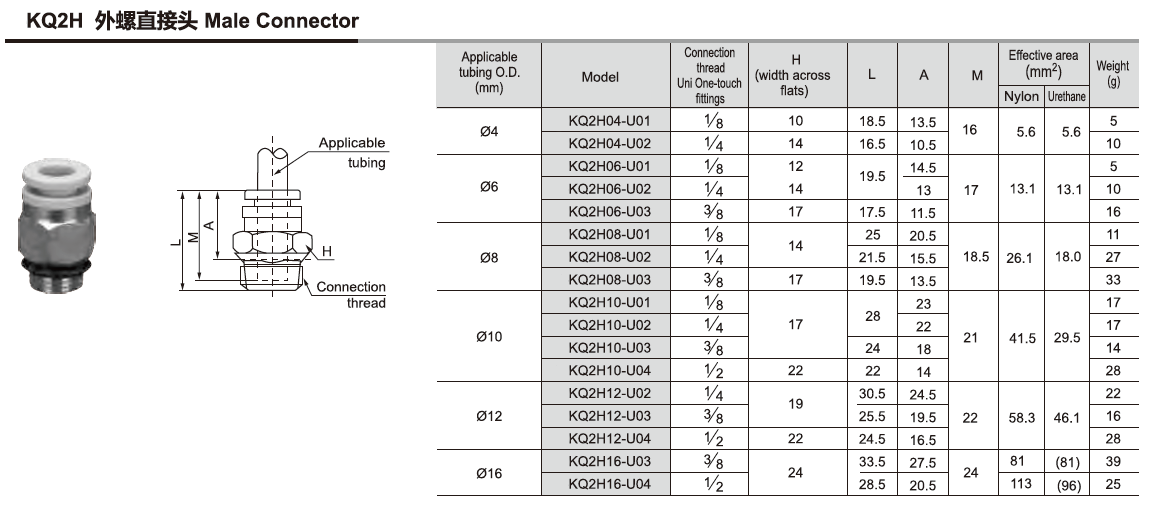

Dimensions
