CG1 Series Mini Cylinder

Mini Cylinder Series CG1
Specification

Bore Size(mm)	20	25	32	40	50	63	80	100
Action	Double acting, Single rod
Type	Non-lube
Fluid	Air
Proof pressure	1.5 MPa
Maximum operating pressure	1.0 MPa
Minimum operating pressure	0.05 MPa
Ambient and fluid temperature	Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing)

Piston speed	50 to 1000 mm/s						50 to 700 mm/s
Stroke length tolerance	Up to 1000(st+1.4~0) mm, Up to 1200(st+1.8~0) mm						Up to 1000 (st+1.4~0) mm, Up to 1500 (st+1.8~0) mm



Thread tolerance	JIS Class 2
Cushion	Rubber bumper, Air cushion
Mounting	Basic style, Axial foot style, Rod side flange style,Head side flange style, Rod side trunnion style,Head side trunnion style, Clevis style (Used for changing the port location by 90°.)

Rod/Head side trunnion styles are not available for bore sizes ø80 and ø100.

Strokes(mm)

Bore size	Standard stroke(1)	Long stroke	Maximum manufacturable stroke

20	25, 50, 75, 100, 125, 150, 200	201 to 350	1500
25	25, 50, 75, 100, 125, 150, 200, 250, 300	301 to 400
32		301 to 450
40		301 to 800
50, 63		301 to 1200
80		301 to 1400
100		301 to 1500

Note 1) Other intermediate strokes can be manufactured upon receipt of an order. Spaces are not used for the intermediate strokes.

Note 2) Long stroke applies to the axial foot style and the rod side flange style. If other length exceeds the stroke limit, the stroke should be determined based on the stroke selection table in the technical data.

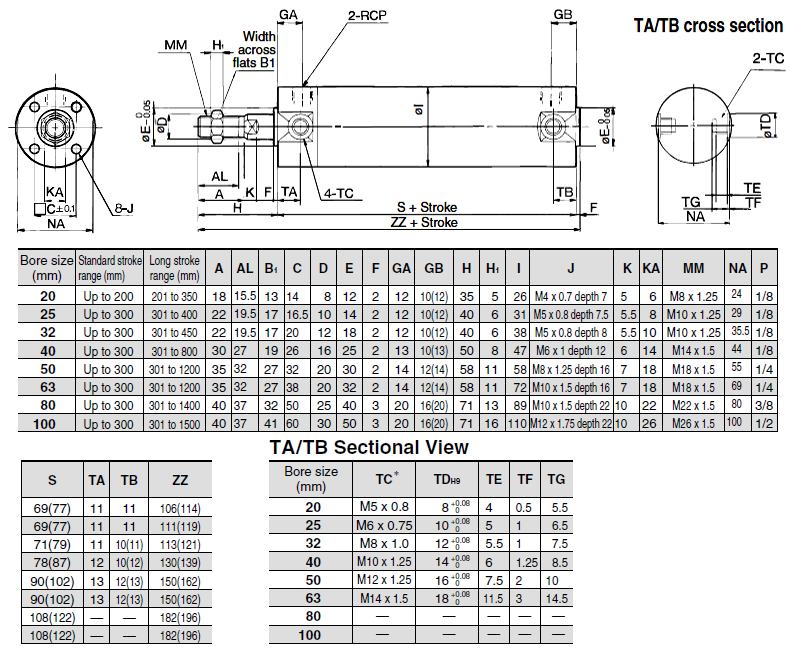

Dimension

Basic Style with Rubber Bumper: CG1BN

Note) ( ): Denotes the dimensions for long stroke.
∗ Trunnion mounting taps with width across flats NA are not attached for bore size ø80 and ø100.
