CDQSB Series Compact Cylinder
CDQSB Series Compact Cylinder
Compact cylinder CDQSB Series
Specification
Specification
Specification
| Bore size (mm) | 12 | 16 | 20 | 25 | |||
| Action | Double acting, Single rod | ||||||
| Fluid | Air | ||||||
| Lubrication | Not required (Non-lube) | ||||||
| Proof pressure | 1.5 MPa | ||||||
| Maximum operating pressure | 1.0 MPa | ||||||
| Minimum operating pressure | 0.07 Mpa | 0.05 MPa | |||||
| Ambient and fluid temperature | Without auto switch:–10 to 70°C(No freezing) With auto switch:–10 to 60°C (No freezing) | ||||||
| Cushion | None, Rubber bumper ∗ | ||||||
| Rod end thread | Female thread | ||||||
| Stroke length tolerance | Standard stroke:+1.0/0; Long stroke:+1.4*/0 | ||||||
| Piston speed | 50 to 500 mm/s | ||||||
| Allowable kinetic energy (J) | Standard type | 0.022 | 0.038 | 0.055 | 0.09 | ||
| With rubber bumper | 0.043 | 0.075 | 0.11 | 0.18 | |||
∗ Stroke length tolerance does not include the deflection of the bumper.
∗ Only rubber bumper is available for the long stroke type.
Ordering Information
Dimensions

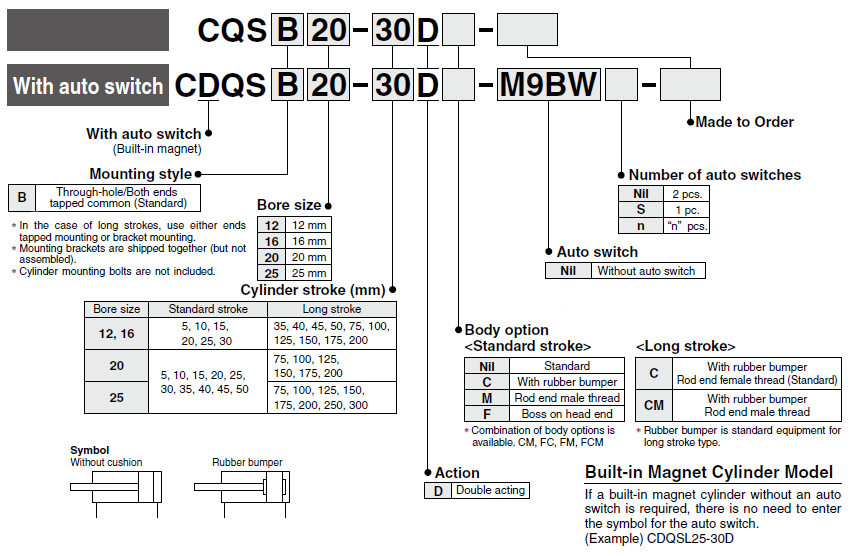

Ordering Information

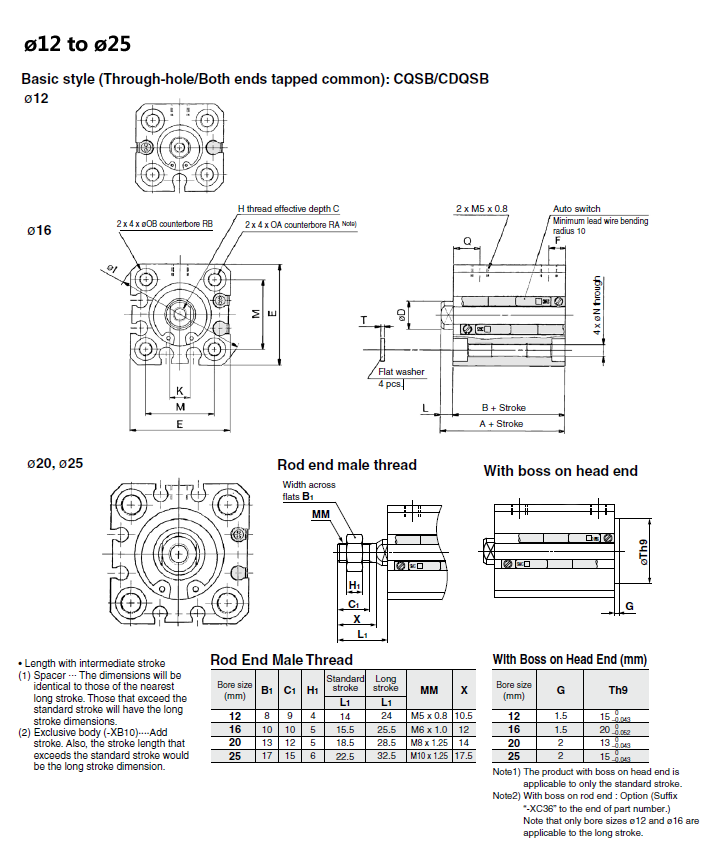

Dimensions
|
Bore size (mm) |
Standard stroke range (mm) | Standard stroke |
Long stroke range(mm) |
Long stroke | C | D | E | H | I | K | M | N | OA | OB | Q | RA | RB | T | |||||||||||
| Without auto switch | Without auto switch | With/Without auto switch | |||||||||||||||||||||||||||
| A | B | F | L | A | B | F | L | A | B | F | L | ||||||||||||||||||
| 12 | 5 to 30 | 20.5 | 17 | 5 | 3.5 | 25.5 | 22 | 5 | 3.5 | 35 to 200 | 45.5 | 32 | 7.5 | 13.5 | 6 | 6 | 25 | M3x0.5 | 32 | 5 | 15.5 | 3.5 | M4x0.7 | 6.5 | 7.5 | 7 | 4 | 0.5 | |
| 16 | 5 to 30 | 20.5 | 17 | 5 | 3.5 | 25.5 | 22 | 5 | 3.5 | 35 to 200 | 45.5 | 32 | 7.5 | 13.5 | 8 | 8 | 29 | M4x0.7 | 38 | 6 | 20 | 3.5 | M4x0.7 | 6.5 | 7.5 | 7 | 4 | 0.5 | |
| 20 | 5 to 50 | 24 | 19.5 | 5.5 | 4.5 | 34 | 29.5 | 5.5 | 4.5 | 75 to 200 | 55.5 | 41 | 8 | 14.5 | 7 | 10 | 36 | M5x0.8 | 47 | 8 | 25.5 | 5.4 | M6x1.0 | 9 | 8 | 10 | 7 | 1 | |
| 25 | 5 to 50 | 27.5 | 22.5 | 5.5 | 5 | 37.5 | 32.5 | 5.5 | 5 | 75 to 300 | 59 | 44 | 9 | 15 | 12 | 12 | 40 | M6x1.0 | 52 | 10 | 28 | 5.4 | M6x1.0 | 9 | 9 | 10 | 7 | 1 | |
Note 1) For the following bore/stroke sizes through-hole is threaded over the entire length: Basic style ø12 and ø16; 5 stroke, ø20; 5 to 15 stroke, ø25; 5 to 10 stroke, ø20 with auto switch built-in magnet; 5 stroke.
Note 2) Rubber bumper type has the same dimensions as those indicated above.
Note 2) Rubber bumper type has the same dimensions as those indicated above.
Specification
| Bore size (mm) | 12 | 16 | 20 | 25 | ||
| Action | Single acting, Single rod | |||||
| Fluid | Air | |||||
| Lubrication | Not required (Non-lube) | |||||
| Proof pressure | 1.5 MPa | |||||
| Max. operating pressure | 1.0 MPa | |||||
| Min. operating pressure | 0.25 Mpa | 0.18 MPa | ||||
| Ambient and fluid temperature | Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) | |||||
| Cushion | None | |||||
| Rod end thread | Female thread | |||||
| Stroke length tolerance | +1.0 mm/0 | |||||
| Piston speed | 50 to 500 mm/s | |||||
| Allowable kinetic energy (J) | 0.022 | 0.038 | 0.055 | 0.09 | ||

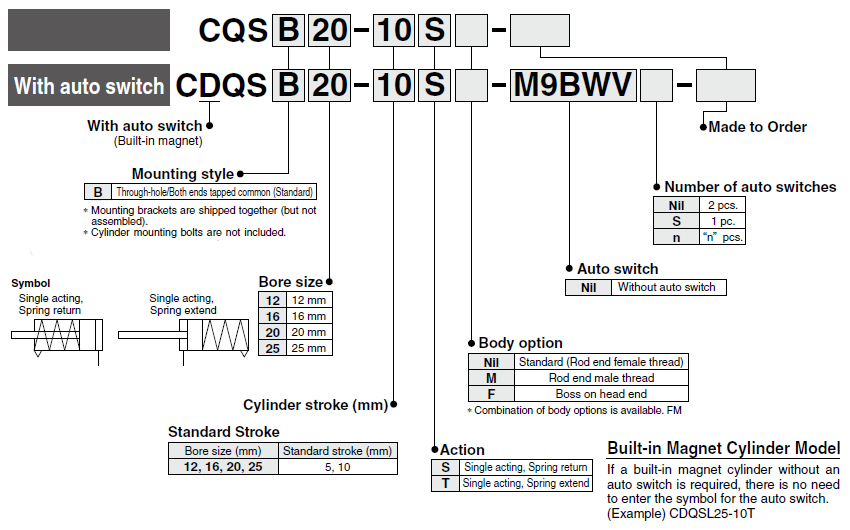

Ordering Information

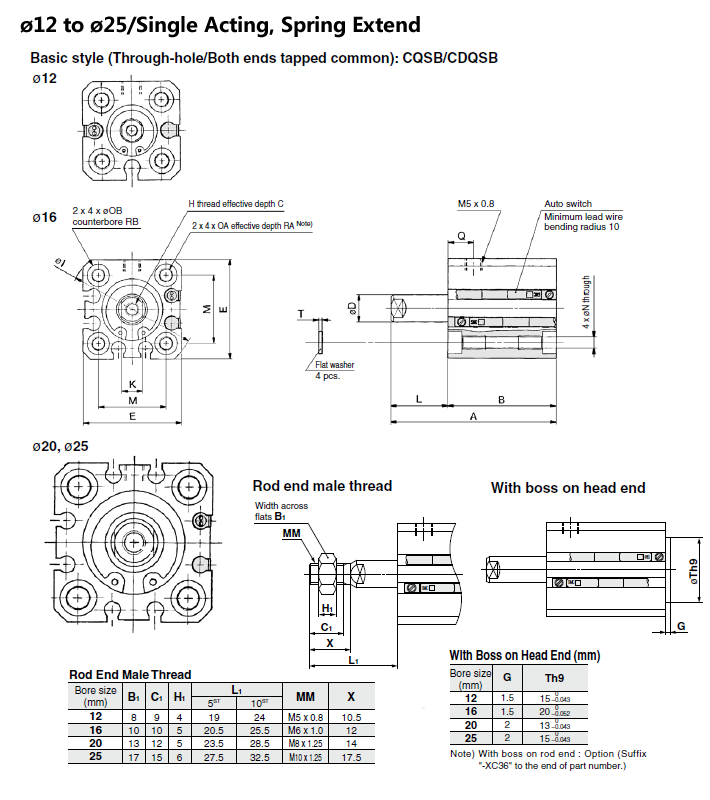

Dimensions

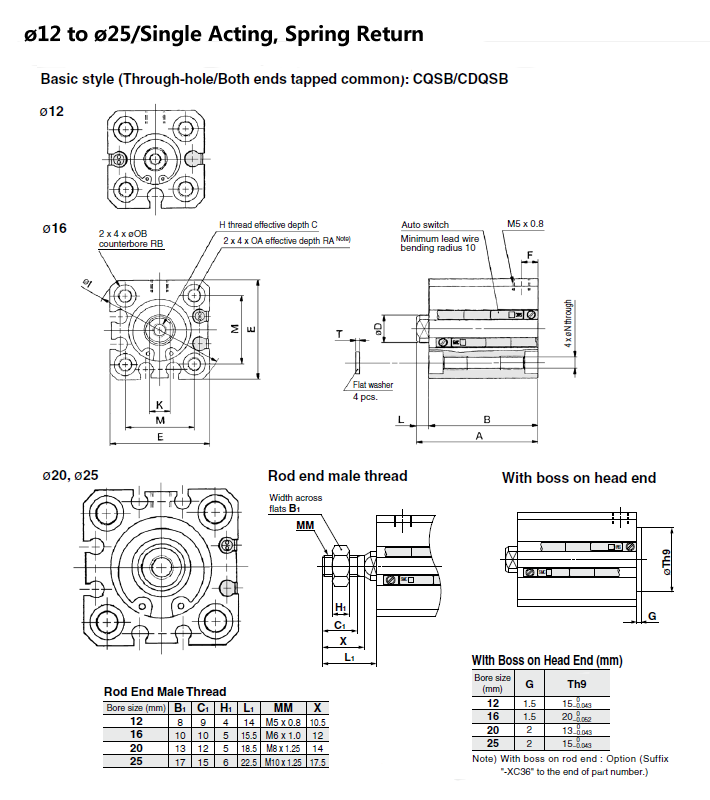

Dimensions
|
Bore size (mm) |
Stroke range (mm) |
Without auto switch | With auto switch | C | D | E | F | H | I | K | L | M | N | OA | OB | RA | RB | T | ||||||
| A | B | A | B | |||||||||||||||||||||
| 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | |||||||||||||||||
| 12 | 5, 10 | 25.5 | 30.5 | 22 | 27 | 30.5 | 35.5 | 27 | 32 | 6 | 6 | 25 | 5 | M3x0.5 | 32 | 5 | 3.5 | 15.5 | 3.5 | M4x0.7 | 6.5 | 7 | 4 | 0.5 |
| 16 | 25.5 | 30.5 | 22 | 27 | 30.5 | 35.5 | 27 | 32 | 8 | 8 | 29 | 5 | M4x0.7 | 38 | 6 | 3.5 | 20 | 3.5 | M4x0.7 | 6.5 | 7 | 4 | 0.5 | |
| 20 | 29 | 34 | 24.5 | 29.5 | 39 | 44 | 34.5 | 39.5 | 7 | 10 | 36 | 5.5 | M5x0.8 | 47 | 8 | 4.5 | 25.5 | 5.4 | M6x1.0 | 9 | 10 | 7 | 1 | |
| 25 | 32.5 | 37.5 | 27.5 | 32.5 | 42.5 | 47.5 | 37.5 | 42.5 | 12 | 12 | 40 | 5.5 | M6x1.0 | 52 | 10 | 5 | 28 | 5.4 | M6x1.0 | 9 | 10 | 7 | 1 | |
Note) For basic style ø12 and ø16 with 5 stroke, through-hole is threaded over the entire length.
For basic style ø20, ø25 with 5 and 10 stroke, through-hole is threaded over the entire length.
With auto switch (Built-in magnet)/ø20; 5 stroke.
|
Bore size (mm) |
Stroke range (mm) |
Without auto switch | With auto switch | C | D | E | H | I | K | L | M | N | OA | OB | RA | RA | RB | T | |||||||
| A | B | A | B | ||||||||||||||||||||||
| 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | 5ST | 10ST | ||||||||||||||||
| 12 | 5, 10 | 30.5 | 40.5 | 22 | 27 | 35.5 | 45.5 | 27 | 32 | 6 | 6 | 25 | M3x0.5 | 32 | 5 | 8.5 | 13.5 | 15.5 | 3.5 | M4x0.7 | 6.5 | 7.5 | 7 | 4 | 0.5 |
| 16 | 30.5 | 40.5 | 22 | 27 | 35.5 | 45.5 | 27 | 32 | 8 | 8 | 29 | M4x0.7 | 38 | 6 | 8.5 | 13.5 | 20 | 3.5 | M4x0.7 | 6.5 | 7.5 | 7 | 4 | 0.5 | |
| 20 | 34 | 44 | 24.5 | 29.5 | 44 | 54 | 34.5 | 39.5 | 7 | 10 | 36 | M5x0.8 | 47 | 8 | 9.5 | 14.5 | 25.5 | 5.4 | M6x1.0 | 9 | 8 | 10 | 7 | 1 | |
| 25 | 37.5 | 47.5 | 27.5 | 32.5 | 47.5 | 57.5 | 37.5 | 42.5 | 12 | 12 | 40 | M6x1.0 | 52 | 10 | 10 | 15 | 28 | 5.4 | M6x1.0 | 9 | 9 | 10 | 7 | 1 | |
