CCV-04
CCV-04
VACUUM EJECTOR CCV-04
Characteristic
*Energy Saving 40% compared to similar vacuum ejector;*Compact Design, can be fitted in small limited space.
Specification
| Model | CCV-04 |
| Fluid | Air |
| Ambient & Fluid Temperature | 0~60℃(No Freezing) |
| Operating Pressure Range | 0.3~0.6MPa |
| Nozzle Dia. | Φ0.4mm |
| Rated Pressure | 0.5MPa |
| Max.Suction Flow Rate | 2.5L/min |
| Max.Vacuum Pressure | -85kPa |
| Air Comsumption | 7.1L/min |
| Weight | 10g |

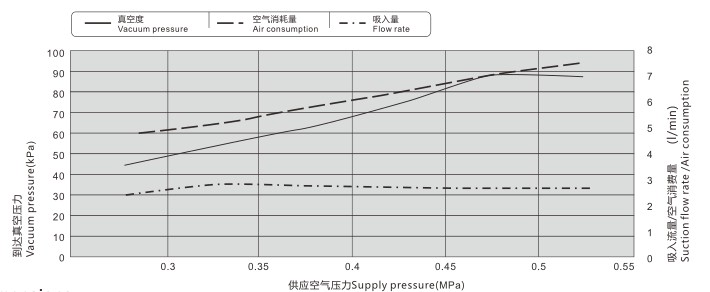

Exhaust Characteristics/Flow Characteristics
Dimension
.jpg)
