Magnetic Sensor Series BC-07RZ
Magnetic Sensor Series BC-07RZ
MAGNETIC SENSOR BC-07RZ Series

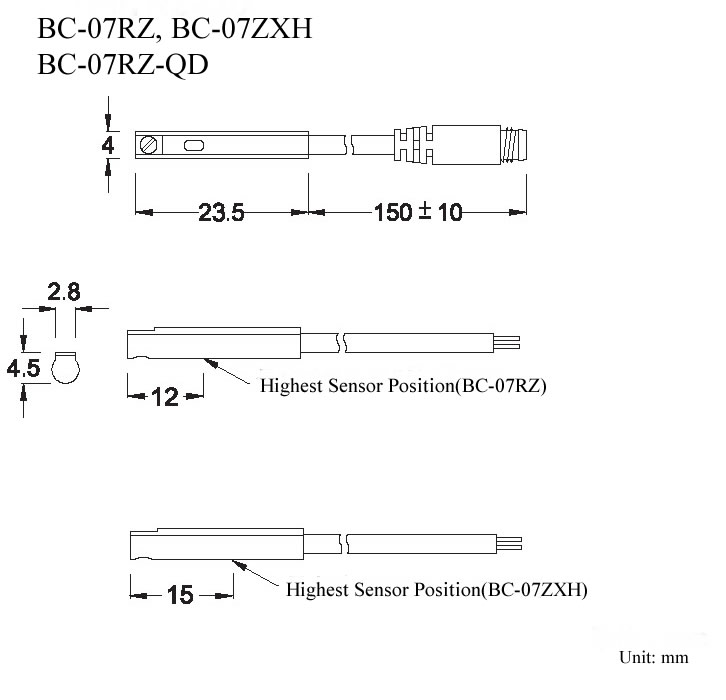

Sensor Dimension
.jpg)

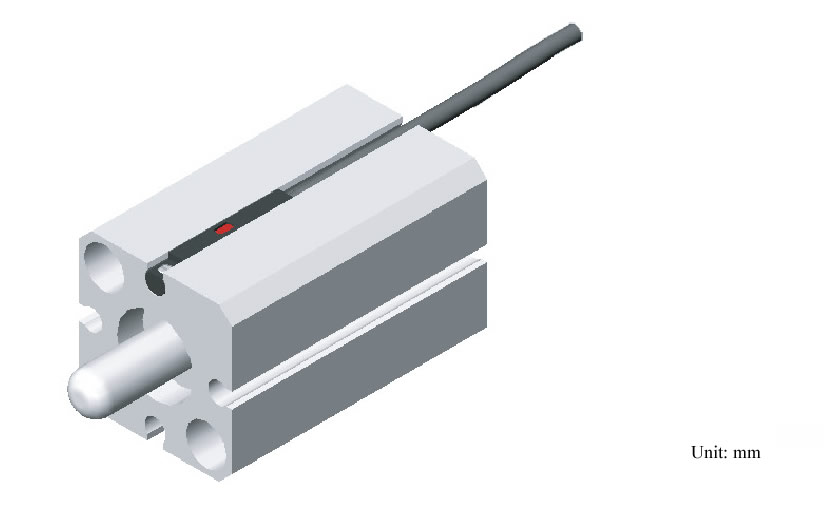

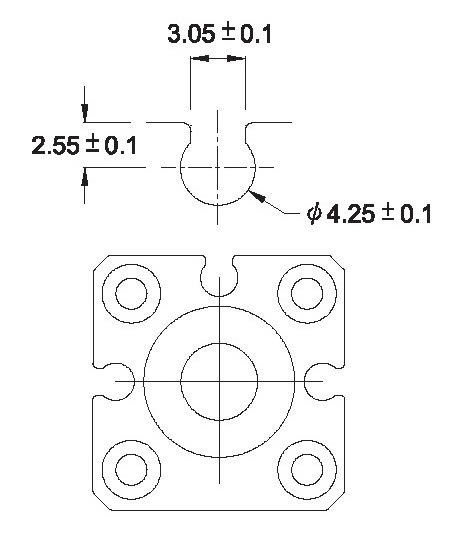

Trench Dimension(Suitable for SMC Cylinder)
.jpg)

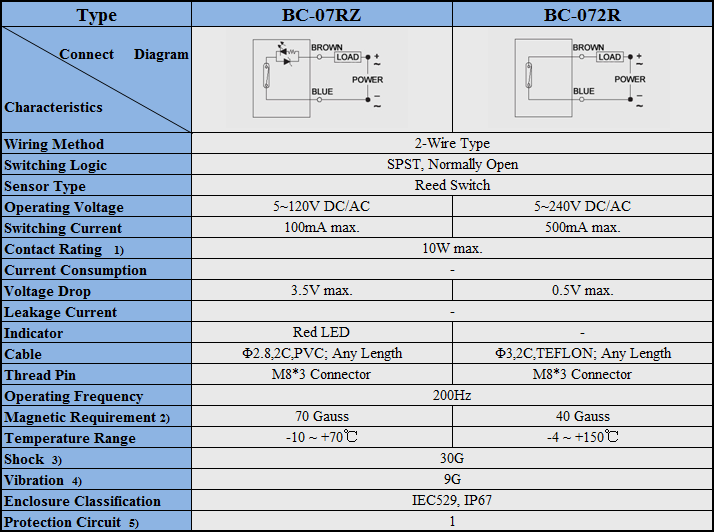

Specification
.png)
Sensor Dimension
Trench Dimension(Suitable for SMC Cylinder)
Specification
NOTE:
1)WARNING:Never exceed rating (Watt=Voltage×Amperage)-Permanent demage to sensor will occur.
2) Measuring standard target: Φ15.5×Φ8×5t(Anisotropy rubber magnet).
1)WARNING:Never exceed rating (Watt=Voltage×Amperage)-Permanent demage to sensor will occur.
2) Measuring standard target: Φ15.5×Φ8×5t(Anisotropy rubber magnet).
3) Sin wave /X,Y,Z 3 directions/3 times each direction/11 ms each time.
4)Double amplitude 1.5mm/10Hz~55Hz~10Hz (Sweep 1 min) /X,Y,Z 3 directions / 1 hour each time.
5)1=None / 2=Short-circuit /3=Power Source Reverse polarity /4=Surge Suppression.
