Air Source Treatment Regulator Series BR
Air Source Treatment Regulator Series BR
Air Source Treatment
Preparation unit--Regulator Series BR
BR
Product Features
1.Thestructure is delicate and compact, which is convenient for installation and application.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).

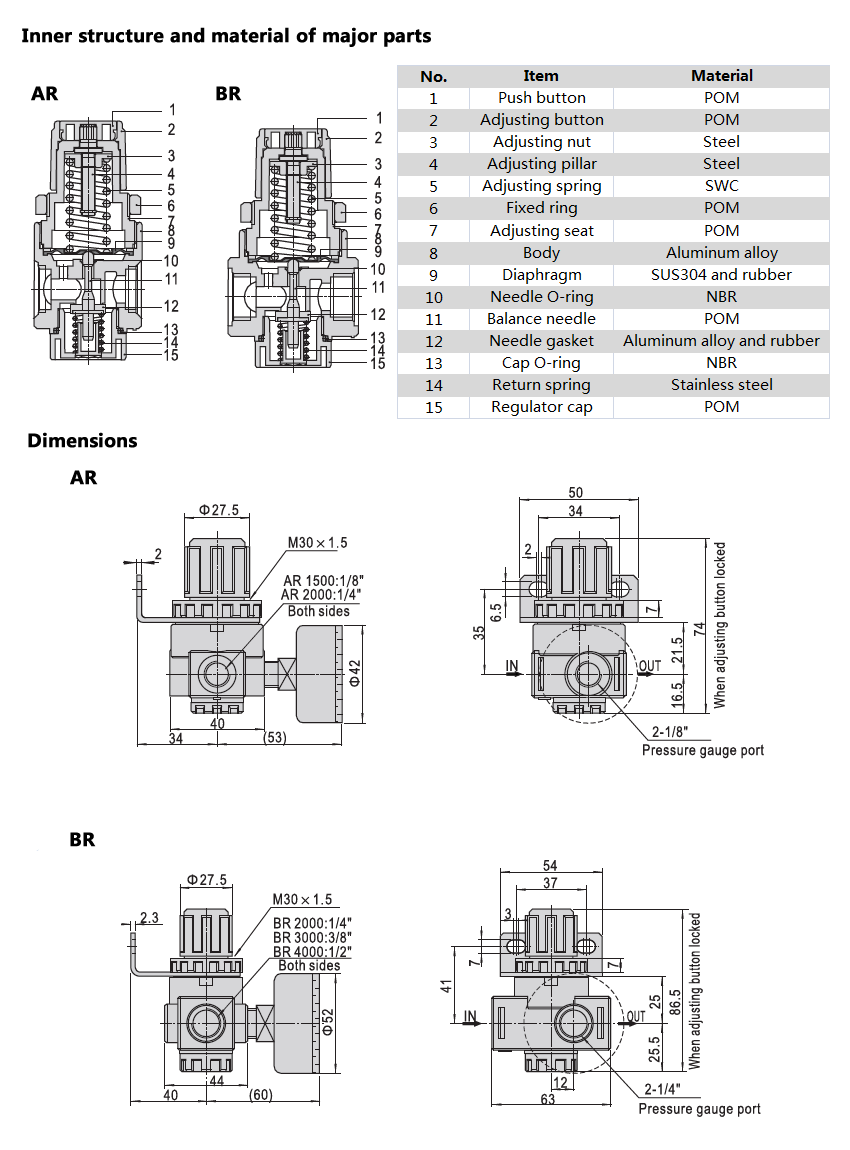

Specification
.png)
Preparation unit--Regulator Series BR
BR
Product Features
1.Thestructure is delicate and compact, which is convenient for installation and application.
2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3.In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).
Specification
| Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Fluid | Air | |||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | |
| Pressure range | 0.05~0.9MPa(7~130Psi) | |||||
| Max. pressure | 1.0MPa（145Psi） | |||||
| Proof pressure | 1.5MPa（215Psi） | |||||
| Temperature range | -20~70℃ | |||||
| Weight | 200g | 230g | ||||
